B1DA7

B1DA7-SWITCH POWER SUPPLY CIRCUIT LOW - PASSENGER MEMORY MIRROR MODULE

For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

Continuously

- Set Condition:

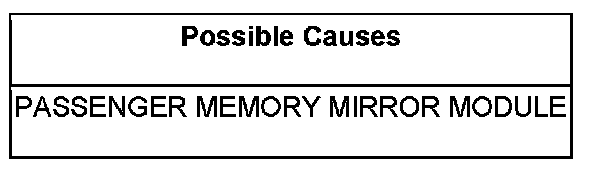

If the Passenger Memory Mirror Module detects an internal module failure.





Diagnostic Test

1. REPLACE THE PASSENGER MEMORY MIRROR MODULE

Repair

- Replace the Passenger Memory Mirror Module.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
