P0072

P0072-AMBIENT AIR TEMPERATURE SENSOR CIRCUIT LOW





For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

The ignition key on.

- Set Condition:

Ambient Temperature Sensor is less than 0.078 of a volt at the PCM for 2.8 seconds. One Trip Fault. Three good trips to turn off the MIL.





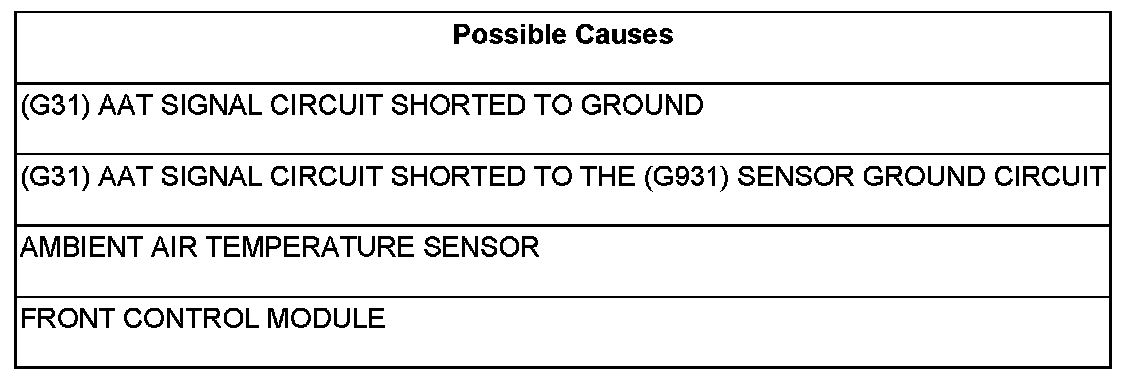

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.

Diagnostic Test

1. ACTIVE DTC

NOTE: Diagnose any CAN - C Communication DTCs before continuing.

Ignition on, engine not running.

With a scan tool, select View DTCs.

Is the DTC Active at this time?

Yes

- Go To 2

No

- Refer to the INTERMITTENT CONDITION Diagnostic Procedure. Intermittent Condition
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test

2. CHECKING AAT SENSOR

Turn the ignition off.

Disconnect the Ambient Air Temperature Sensor harness connector.

Ignition on, engine not running.

With a scan tool, read the AAT Sensor voltage.

Is the voltage above 4.6 volts?

Yes

- Replace the Ambient Temperature Sensor.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test

No

- Go To 3

3. (G31) AAT SIGNAL CIRCUIT SHORTED TO GROUND





Turn the ignition off.

Disconnect the C2 FCM harness connector.

Measure the resistance between ground and the (G31) AAT Signal circuit in the AAT Sensor harness connector.

Is the resistance below 100 ohms?

Yes

- Repair the short to ground in the (G31) AAT Signal circuit.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test

No

- Go To 4

4. (G31) AAT SIGNAL CIRCUIT SHORTED TO THE (G931) SENSOR GROUND CIRCUIT





Measure the resistance between the (G931) Sensor ground circuit and the (G31) AAT Signal circuit in the AAT Sensor harness connector.

Is the resistance below 5.0 ohms?

Yes

- Repair the short between the (G931) Sensor ground circuit and the (G31) AAT Signal circuit.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test

No

- Go To 5

5. FRONT CONTROL MODULE

NOTE: Before continuing, check the FCM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.

Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and Ground circuits.

Were there any problems found?

Yes

- Repair as necessary.
- perform BODY VERIFICATION TEST. Body Verification Test

No

- Replace and program the Front Control Module.
- perform BODY VERIFICATION TEST. Body Verification Test
