P1573

P1573-BRAKE PEDAL STUCK OFF





For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

Ignition on, In plant mode passed the Applied test.

- Set Condition:

PCM recognizes the Brake Pedal could not electronically indicate the released (Off) position with both switches. If P1572 sets, P1573 will also set. One trip fault.





Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.

Diagnostic Test

1. ACTIVE DTC

NOTE: Make sure the Stop Lamp Switch is adjusted properly before continuing.

Ignition on, engine not running.

With a scan tool, select View DTCs.

It may be necessary to press and release the Brake Pedal to get the code to become Active.

Is the DTC Active at this time?

Yes

- Go To 2

No

- Refer to the INTERMITTENT CONDITION Diagnostic Procedure. Intermittent Condition

2. STOP LAMP SWITCH OPERATION

Turn the ignition off.

Disconnect the Stop Lamp Switch harness connectors.

Measure the resistance between the (Z904) Ground circuit terminal and the (B15) Brake Switch No.1 Signal terminal in the Stop Lamp Switch.

Apply and release the Stop Lamp Switch while monitoring the ohmmeter.

Does the resistance change from below 5.0 ohms to an open circuit when pressing and releasing the brake switch?

Yes

- Go To 3

No

- Replace the Stop Lamp Switch.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test

3. STOP LAMP SWITCH OPERATION

Measure the resistance between the (F942) Fused Ignition Switch circuit terminal and the (B16) Brake Switch No.2 Signal circuit terminal in the Stop Lamp Switch.

Apply and release the Stop Lamp Switch while monitoring the ohmmeter.

Does the resistance change from below 5.0 ohms to an open circuit when pressing and releasing the Stop Lamp switch?

Yes

- Go To 4

No

- Replace the Stop Lamp Switch.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test

4. (B16) BRAKE SWITCH NO.2 SIGNAL CIRCUIT SHORTED TO BATTERY VOLTAGE





Disconnect the C3 PCM harness connector.

Ignition on, engine not running.

Measure the voltage on the (B16) Brake Switch No.2 Signal circuit in the Stop Lamp Switch harness connector.

Is the voltage above 1.0 volt?

Yes

- Repair the short to battery voltage in the (B16) Brake Switch No.2 Signal circuit.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test

No

- Go To 5

5. (B15) BRAKE SWITCH NO.1 SIGNAL CIRCUIT SHORTED TO GROUND





Turn the ignition off.

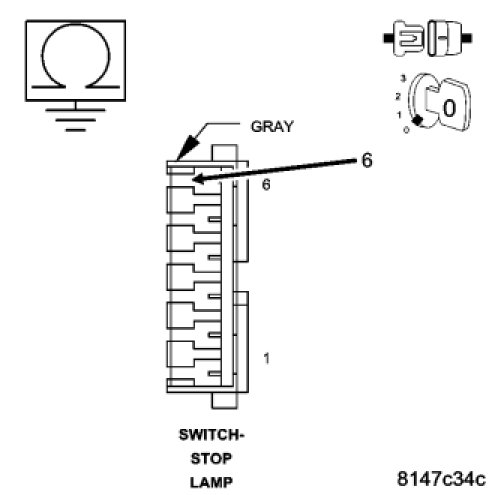

Measure the resistance between ground and the (B15) Brake Switch No.1 Signal circuit in the Stop Lamp Switch harness connector.

Is the resistance below 100 ohms?

Yes

- Repair the short to ground in the (B15) Brake Switch No.1 Signal circuit.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test

No

- Go To 6

6. PCM

NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.

Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and Ground circuits.

Were there any problems found?

Yes

- Repair as necessary.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test

No

- Replace and program the Powertrain Control Module.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
