C1415

C1415- TRANSFER CASE MOTOR CURRENT PERFORMANCE

For a complete wiring diagram refer to Diagrams/Electrical. Electrical Diagrams


- When Monitored:

With the ignition on and no system undervoltage or overvoltage condition present.

- Set Condition:

1. Current reading greater than 1A for 200 msec with no motor activation.


2. Current reading never greater than 1A during a completed range or neutral shift.

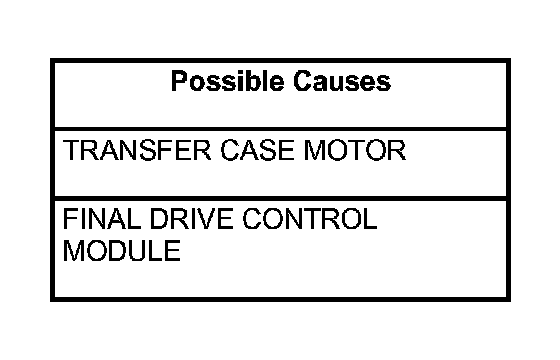

Diagnostic Test


1. DTC IS ACTIVE

Ignition on, engine not running.

With the scan tool, read DTCs in the Final Drive Control Module.

Is the status Active for this DTC?

Yes

- Go to 2

No

- Go to 3


2. TRANSFER CASE MOTOR

Turn the ignition off to the lock position

Using the wiring diagram/schematic as a guide, inspect all wiring and connectors that pertain to this circuit.

If any problems are found, repair as necessary and retest.

If no other problems are found, replace the Transfer Case Motor.

Ignition on, engine not running.

Cycle the Transfer Case Selector Switch to each position several times during a test drive.

With the scan tool, read DTCs in the Final Drive Control Module.

Is the DTC status Active?

Yes

- Replace the Final Drive Control Module.
- Perform the TRANSFER CASE VERIFICATION TEST-VER 1. Transfer Case Verification Test

No

- Test complete.
- Perform the TRANSFER CASE VERIFICATION TEST-VER 1. Transfer Case Verification Test


3. INTERMITTENT WIRING AND CONNECTORS

The conditions necessary to set this DTC are not present at this time.

Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.

While monitoring the scan tool data relative to this circuit, wiggle test the wiring and connectors.

Look for the data to change or for the DTC to reset during the wiggle test.

Were any problems found?

Yes

- Repair as necessary.
- Perform the TRANSFER CASE VERIFICATION TEST-VER 1. Transfer Case Verification Test

No

- Test complete.
