Campaign - Reconfigure TIPM Daytime Running Lamps: Overview
Revised May 2007Dealer Service Instructions for:
Customer Satisfaction Notification G18
Reconfigure TIPM Daytime Running Lamps
The daytime running lamp functional verification was revised.
Models
2007 (MK) Jeep(R) Compass and Patriot
NOTE:
This notification applies only to the above vehicles equipped without the trail rated option (sale code DAW) and with daytime running lamps (sales code LMX) built from January 23, 2007 through March 23, 2007 (MDH: 012300 through 032318).
IMPORTANT:
Some of the involved vehicles may be in dealer new vehicle
inventory. Dealers should complete this repair on these vehicles before retail delivery. Dealers should also perform this repair on vehicles in for service. Involved vehicles can be determined by using the VIP inquiry process.
Subject
The Daytime Running Lamp option on about 3530 of the above vehicles was
inadvertently deactivated when they were manufactured and is inoperative.
Repair
The TIPM configuration must be reset.
Parts Information
No parts are required for this repair.

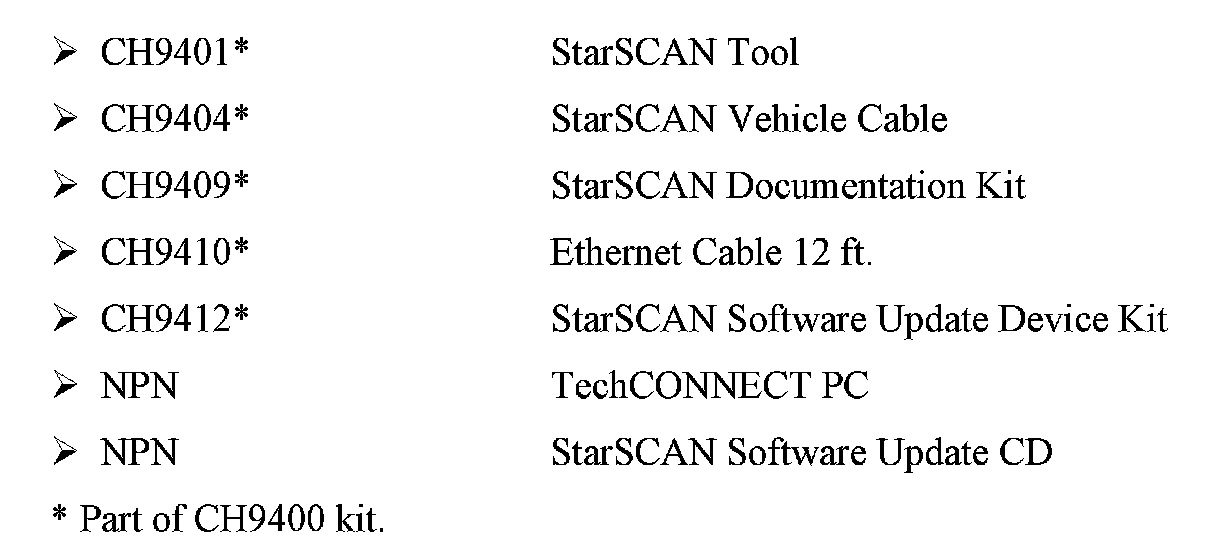

Special Tools
The special tools are required to perform this repair:
Completion Reporting and Reimbursement
Claims for vehicles that have been serviced must be submitted on the
DealerCONNECT Claim Entry Screen located on the Service tab. Claims
submitted will be used by DaimlerChrysler to record Customer Satisfaction
Notification service completions and provide dealer payments.
Use the labor operation number and time allowance shown.
NOTE:
See the Warranty Administration Manual, Recall Claim Processing
Section, for complete claim processing instructions.
Dealer Notification
All dealers will receive three copies of this dealer notification letter by mail. To view this notification on DealerCONNECT, select "Global Recall System" on the Service tab, then click on the description of this notification.
Owner Notification and Service Scheduling
All involved vehicle owners known to DaimlerChrysler are being notified of the service requirement by mail. They are requested to schedule appointments for this service with their dealers. A generic copy of the owner letter is included.
Enclosed with each owner letter is an Owner Notification postcard to allow owners to update our records if applicable.
Vehicle Lists, Global Recall System, VIP and Dealer Follow Up
All involved vehicles have been entered into the DealerCONNECT Global Recall System (GRS) and Vehicle Information Plus (VIP) for dealer inquiry as needed.
GRS provides involved dealers with an updated VIN list of their incomplete vehicles.
The owner's name, address and phone number are listed if known. Completed vehicles are removed from GRS within several days of repair claim submission.
To use this system, click on the "Service" tab and then click on "Global Recall System." Your dealer's VIN list for each recall displayed can be sorted by: those vehicles that were unsold at recall launch, those with a phone number, city, zip code, or VIN sequence.
Dealers should perform this repair on all unsold vehicles before retail
delivery. Dealers should also use the VIN list to follow up with all owners to schedule appointments for this repair.
VIN lists may contain confidential, restricted owner name and address information that was obtained from the Department of Motor Vehicles of various states. Use of this information is permitted for this notification only and is strictly prohibited from all other use.
Additional Information
If you have any questions or need assistance in completing this action, please contact your Service and Parts District Manager.
Customer Services Field Operations
DaimlerChrysler Corporation
