B184F

B184F-FLIPPER GLASS CONTROL CIRCUIT HIGH- CLUSTER





For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

Continuously

- Set Condition:

When the Cluster senses a high condition on the Flip-UP (Flipper) Glass Relay Control circuit for over 10 seconds, this code will set.





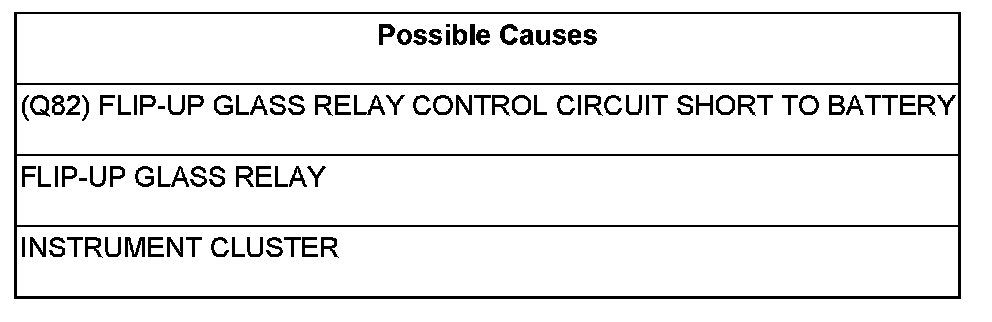

Diagnostic Test

1. TEST FOR INTERMITTENT CONDITION

With the scan tool, record and erase DTC's

Operate the Flip-Up Glass Switch several times.

Cycle the ignition from on to off 3 times.

Turn the ignition on.

With the scan tool, read DTC's.

Does the scan tool display B184F-FLIPPER GLASS CONTROL CIRCUIT HIGH?

Yes

- Go To 2

No

- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

2. FLIP-UP GLASS RELAY SHORTED





With the scan tool, erase DTC's.

Install a substitute relay in place of the Flip-Up Glass relay (in Junction Block).

With the scan tool actuate the Flip-Up Glass.

With the scan tool, read DTC's.

Does the scan tool display FLIPPER GLASS RELAY CONTROL CIRCUIT HIGH?

No

- Replace the Flip-Up Glass relay.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

Yes

- Go To 3

3. (Q82) FLIP-UP GLASS RELAY CONTROL CIRCUIT SHORT TO BATTERY





Turn the ignition off.

Remove the Flip-Up Glass relay.

Disconnect the Cluster C2 connector.

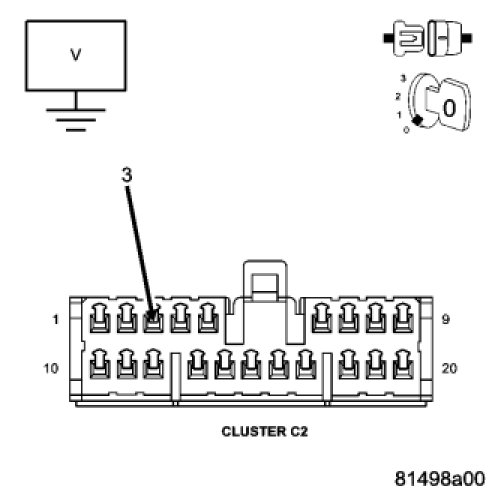

Measure the voltage between ground and the (Q82) Flip-Up Glass Relay Control circuit in the Cluster C2 connector.

Is the voltage above 0.5 volts?

Yes

- Repair the (Q82) Flip-Up Glass Relay Control circuit for a short to voltage.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Replace the Instrument Cluster.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
