B230A

B230A-REAR WIPER SWITCH INPUT CIRCUIT LOW (SCM)

For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

With the ignition on.

- Set Condition:

When the Steering Control Module detects a short/HIGH condition.





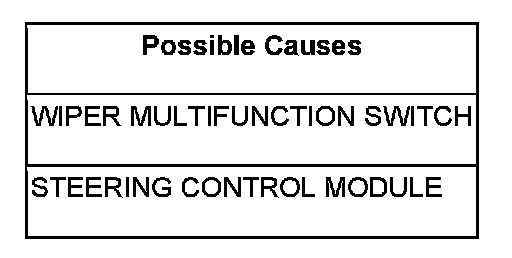

Diagnostic Test

1. INTERMITTENT CONDITION

Turn the ignition on.

With the Scan Tool, clear all CCN DTC's.

Turn the Wipers ON then OFF.

With the Scan Tool, read the Wiper DTC's.

Does the Scan Tool read: B230A-REAR WIPER SWITCH INPUT CIRCUIT LOW (SCM)?

Yes

- Go To 2

No

- The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test

2. WIPER MULTIFUNCTION SWITCH

Turn the ignition off.

Using the correct service procedure, remove the Wiper Multi-Function Switch.

Measure the internal resistance of the Multifunction Switch between cavities 4 and 5. Move the switch into each position while measuring.

OFF = 1045 ohms

INTERMITTENT = 382 ohms

WIPE = 174 ohms

WASH = 0 ohms

Is the resistance in each position correct?

Yes

- Replace the Steering Control Module.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Replace the Multifunction Switch.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test
