Air Flow Meter/Sensor

Component ID: 458

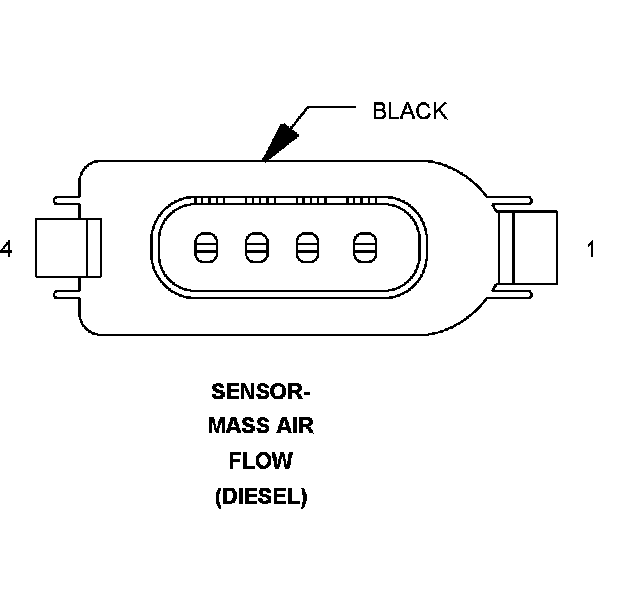

Component : SENSOR-MASS AIR FLOW

Connector:
Name : SENSOR-MASS AIR FLOW
Color : BLACK
# of pins : 4
Qualifier : (DIESEL)




Pin Description Circuit
1 IGNITION SWITCH OUTPUT (RUN-START) F944 18PK/BK
2 MASS AIR FLOW SENSOR GROUND K957 18BR
3 MASS AIR FLOW TEMPERATURE SENSOR SIGNAL K362 20DG/YL
4 MASS AIR FLOW SENSOR SIGNAL K157 20BL/YL

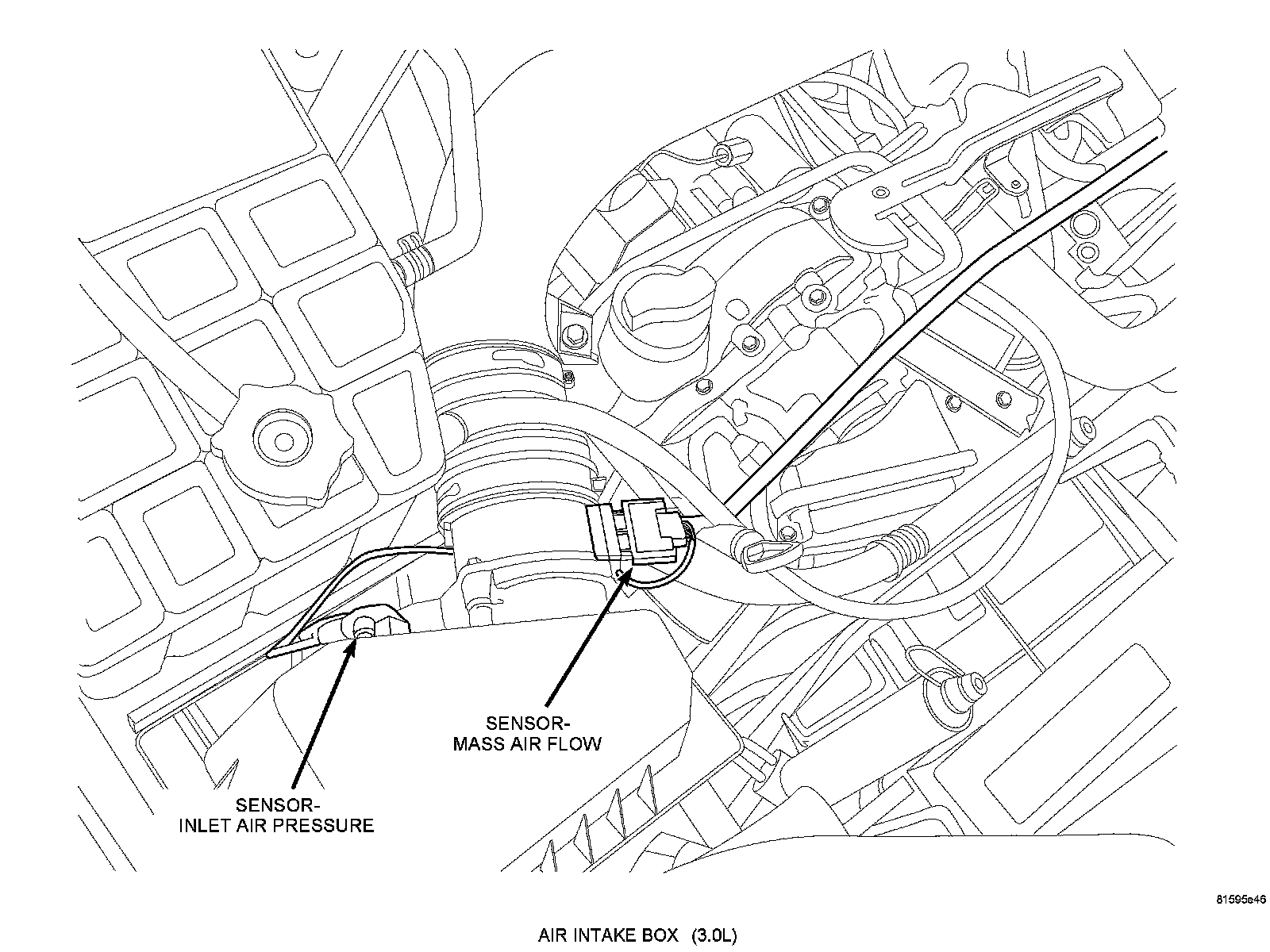

Component Location - 31
