Blower Motor

Component ID: 204
Component : MOTOR-BLOWER

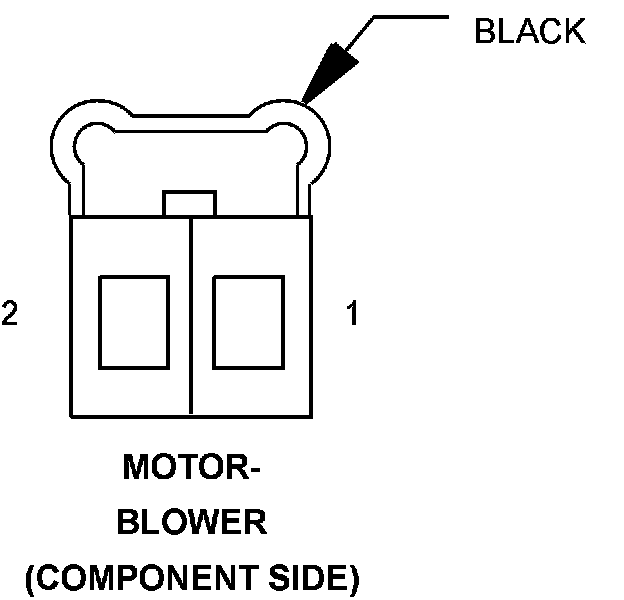

Connector:
Name : MOTOR-BLOWER
Color : BLACK
# of pins : 2
Qualifier : (COMPONENT SIDE)




Pin Description Circuit
1 BLOWER MOTOR RELAY OUTPUT C7 12DG
Pin Description Circuit
1 BLOWER MOTOR RELAY OUTPUT C7 12DG
2 BLOWER MOTOR GROUND C75 12BK
2 BLOWER HIGH SPEED C75 12BK



Connector:
Name : MOTOR-BLOWER
Color : BLACK
# of pins : 2
Qualifier : (MTC)




Pin Description Circuit
1 BLOWER MOTOR RELAY OUTPUT C7 12DB
2 BLOWER HIGH SPEED C75 12LB
