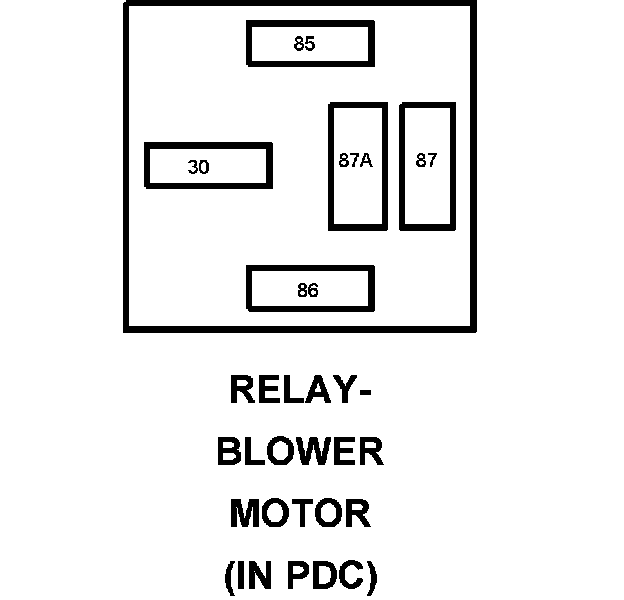

Blower Motor Relay

Component ID: 232
Component : RELAY-BLOWER MOTOR

Connector:
Name : RELAY-BLOWER MOTOR
Color :
# of pins : 0




30 FUSED B(+) A502 12RD/LG
85 GROUND Z387 20BK
85 GROUND Z387 18BK
86 FUSED RUN RELAY OUTPUT F921 20PK/GY
87 BLOWER MOTOR RELAY OUTPUT C7 12DB
87A - -
