Coolant Temperature Sensor/Switch (For Computer)

Component ID: 442
Component : SENSOR-ENGINE COOLANT TEMPERATURE

Connector:
Name : SENSOR-ENGINE COOLANT TEMPERATURE
Color : BLACK
# of pins : 2
Qualifier : (3.7L/4.7L)




Pin Description Circuit
1 ECT SIGNAL K2 20VT/OR
2 SENSOR GROUND K900 20DB/DG

Component Location - 15




Component Location - 30




Component Location - 27






Connector:

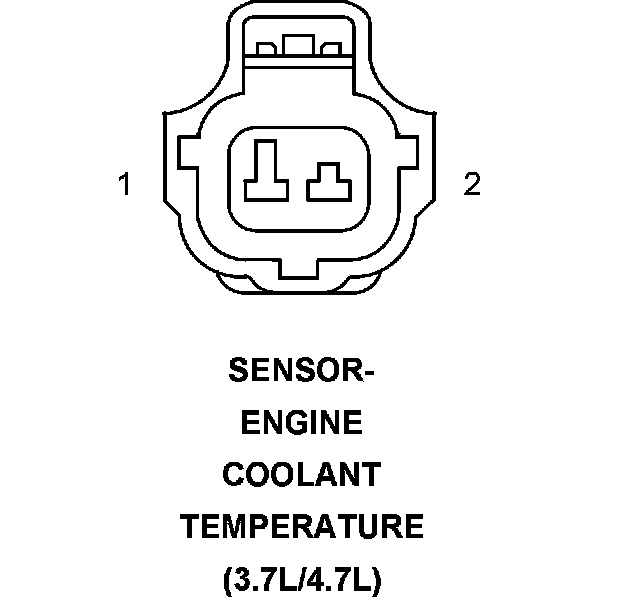

Name : SENSOR-ENGINE COOLANT TEMPERATURE
Color :
# of pins : 2
Qualifier : (5.7L)




Pin Description Circuit
1 ECT SIGNAL K2 20VT/OR
2 SENSOR GROUND K900 20DB/DG

Component Location - 15




Component Location - 30




Component Location - 27






Connector:
Name : SENSOR-ENGINE COOLANT TEMPERATURE
Color :
# of pins : 2
Qualifier : (DIESEL)




Pin Description Circuit
1 ENGINE COOLANT TEMPERATURE SENSOR GROUND K222 18BR/RD
2 ENGINE COOLANT TEMPERATURE SENSOR SIGNAL K2 20DG/RD

Component Location - 15




Component Location - 30




Component Location - 27
