Driver/Vehicle Information Display

Component ID: 178

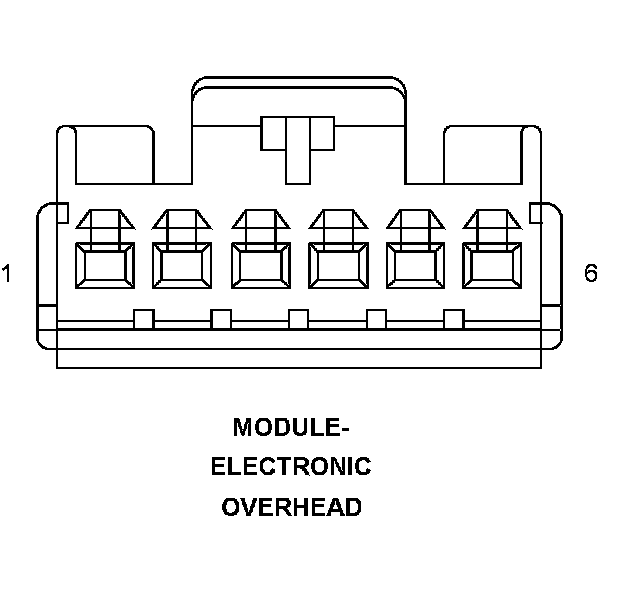

Component : MODULE-ELECTRONIC OVERHEAD

Connector:
Name : MODULE-ELECTRONIC OVERHEAD
Color :
# of pins : 6




Pin Description Circuit
1 CAN B BUS (+) D55 20WT/OR
2 CAN B BUS (-) D54 20WT
3 FUSED B(+) A114 20GY/RD
4 GROUND Z915 20BK
5 FUSED RUN RELAY OUTPUT F921 20PK/YL
6 - -
