Fuel Pressure Sensor/Switch

Component ID: 448

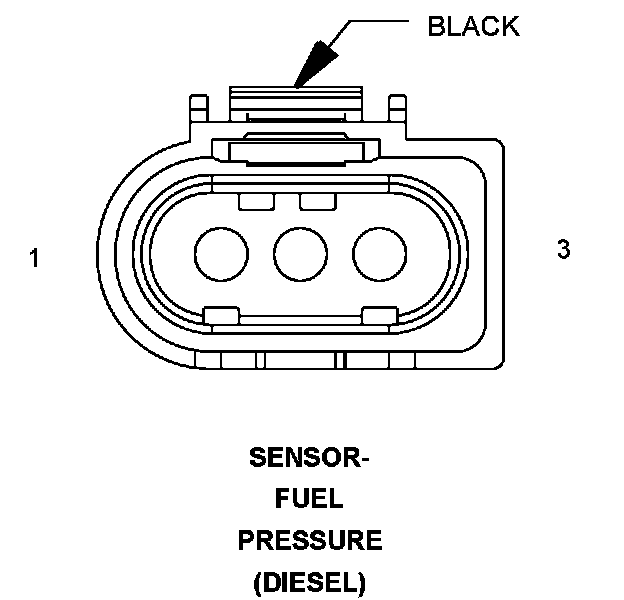

Component : SENSOR-FUEL PRESSURE

Connector:
Name : SENSOR-FUEL PRESSURE
Color : BLACK
# of pins : 3
Qualifier : (DIESEL)




Pin Description Circuit
1 FUEL PRESSURE SENSOR GROUND K359 20GY/BR
2 FUEL PRESSURE SENSOR SIGNAL K181 20DG/VT
3 FUEL PRESSURE SENSOR 5 VOLT SUPPLY K350 20RD/WT

Component Location - 30
