Fuel Temperature Sensor

Component ID: 449

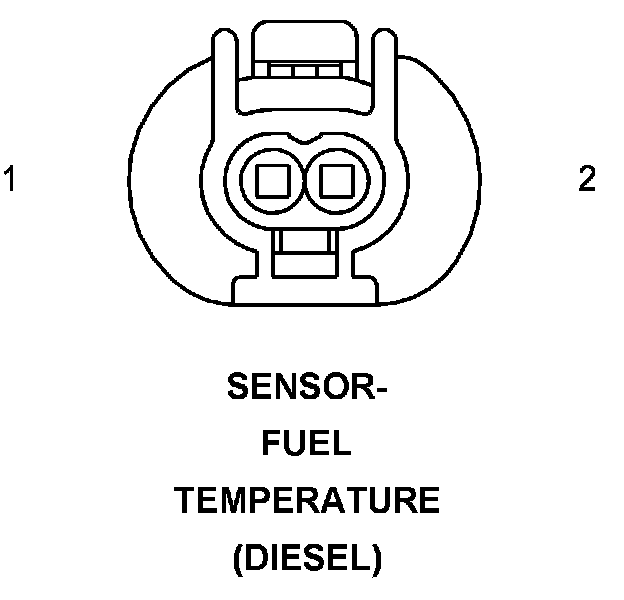

Component : SENSOR-FUEL TEMPERATURE

Connector:
Name : SENSOR-FUEL TEMPERATURE
Color :
# of pins : 2
Qualifier : (DIESEL)




Pin Description Circuit
1 FUEL TEMPERATURE SENSOR GROUND K914 20BL/DG
2 FUEL TEMPERATURE SENSOR SIGNAL K156 20BL/RD

Component Location - 30
