Oxygen Sensor

Component ID: 462
Component : SENSOR-OXYGEN

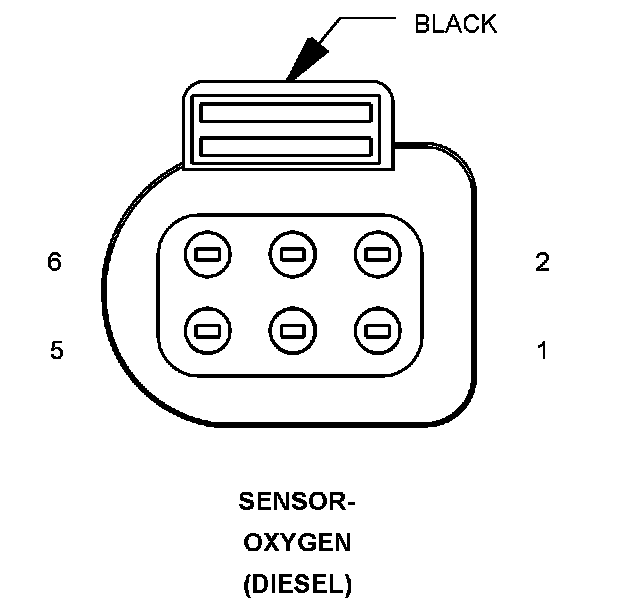

Connector:
Name : SENSOR-OXYGEN
Color : BLACK
# of pins : 6
Qualifier : (DIESEL)




Pin Description Circuit
1 O2 1/1 POSITIVE CURRENT CONTROL K43 20GY/RD
2 O2 1/1 NEGATIVE CURRENT CONTROL Z43 20DG/BL
3 O2 1/1 HEATER CONTROL K99 16GY/BR
4 FUSED ASD RELAY OUTPUT A15 16RD/DG
5 O2 1/1 PUMP CELL CURRENT TRIM K902 20GY/WT
6 O2 1/1 REFERENCE SIGNAL K41 20DG/BK
