Radiator Cooling Fan Motor

Component ID: 188

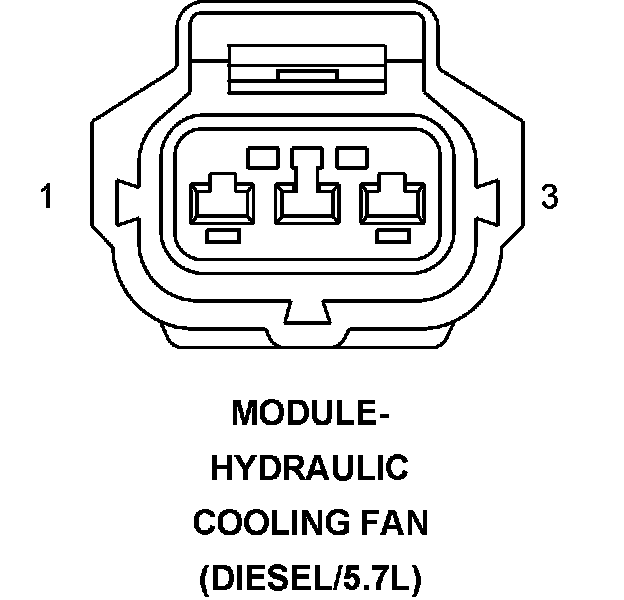

Component : MODULE-HYDRAULIC COOLING FAN

Connector:
Name : MODULE-HYDRAULIC COOLING FAN
Color :
# of pins : 3
Qualifier : (DIESEL/5.7L)




Pin Description Circuit
1 FUSED B(+) A916 16RD
Pin Description Circuit
1 FUSED B(+) A916 18RD/GY
2 HYDRAULIC RADIATOR FAN SOLENOID CONTROL K173 20BR/VT
3 GROUND Z823 20BK/DG

Component Location - 7
