Rain Sensor
Component ID: 479

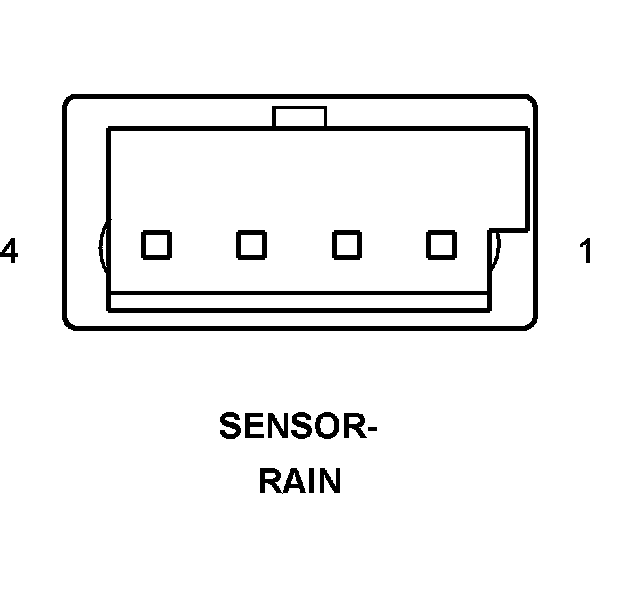

Component : SENSOR-RAIN
Connector:
Name : SENSOR-RAIN
Color :
# of pins : 4
Pin Description Circuit
1 FUSED RUN/ACCESSORY RELAY OUTPUT A934 18RD/OR
2 GROUND Z915 18BK
3 CAN B BUS (+) D55 20BR/DB
4 CAN B BUS (-) D54 20BR
Component ID: 479
Component : SENSOR-RAIN
Connector:
Name : SENSOR-RAIN
Color :
# of pins : 4
Pin Description Circuit
1 FUSED RUN/ACCESSORY RELAY OUTPUT A934 18RD/OR
2 GROUND Z915 18BK
3 CAN B BUS (+) D55 20BR/DB
4 CAN B BUS (-) D54 20BR
