Seat Sensor/Switch

Component ID: 480

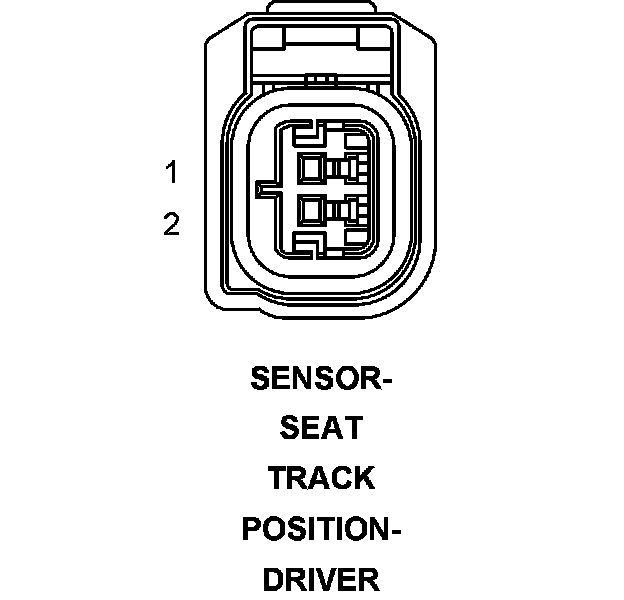

Component : SENSOR-SEAT TRACK POSITION-DRIVER

Connector:
Name : SENSOR-SEAT TRACK POSITION-DRIVER
Color :
# of pins : 2




Pin Description Circuit
1 DRIVER SEAT POSITION SENSOR DATA R261 20LB/BK
2 DRIVER SEAT POSITION SENSOR VOLTAGE R263 20LB/VT

Component Location - 55

Fig. 55:
