Sunroof / Moonroof Switch

Component ID: 534

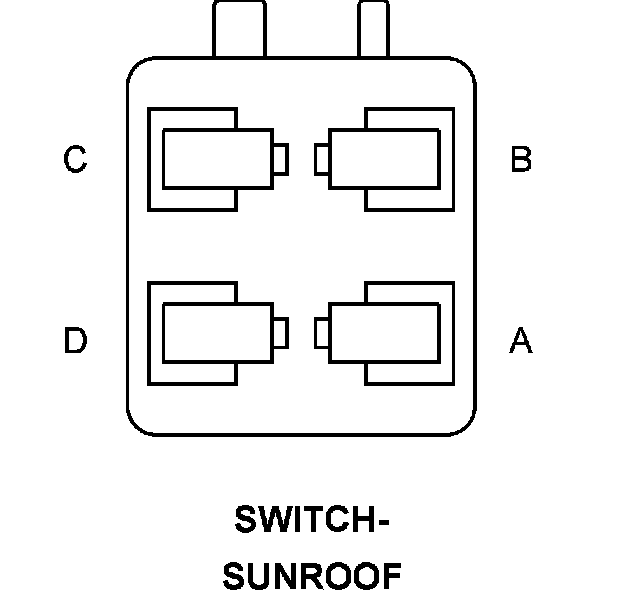

Component : SWITCH-SUNROOF

Connector:
Name : SWITCH-SUNROOF
Color :
# of pins : 4




A SUNROOF VENT SWITCH SENSE Q4 20OR/YL
B SUNROOF SWITCH SUPPLY Q6 20OR/LG
C SUNROOF CLOSE SWITCH SENSE Q5 20OR/LB
D SUNROOF OPEN SWITCH SENSE Q3 20OR/TN
