Turbo Boost Sensor

Component ID: 437

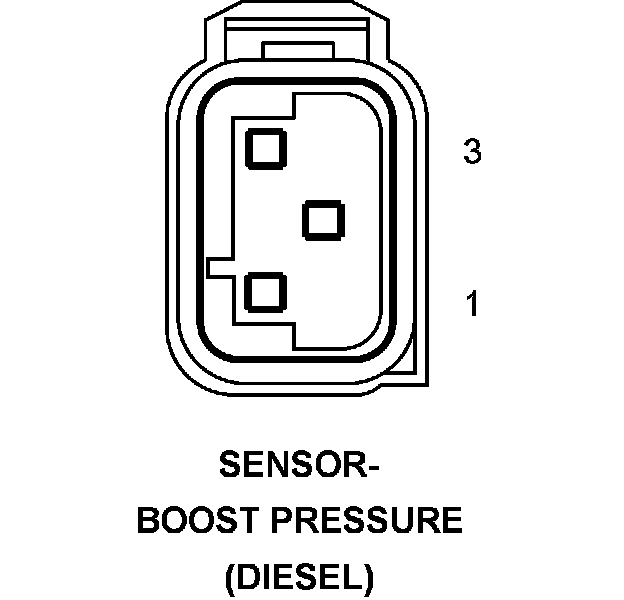

Component : SENSOR-BOOST PRESSURE

Connector:
Name : SENSOR-BOOST PRESSURE
Color :
# of pins : 3
Qualifier : (DIESEL)




Pin Description Circuit
1 BOOST PRESSURE SENSOR GROUND K656 20BR/GY
2 BOOST PRESSURE SENSOR SIGNAL K37 20GY/YL
3 BOOST PRESSURE SENSOR 5 VOLT SUPPLY K356 20RD/BK

Component Location - 30
