Wastegate

Component ID: 205

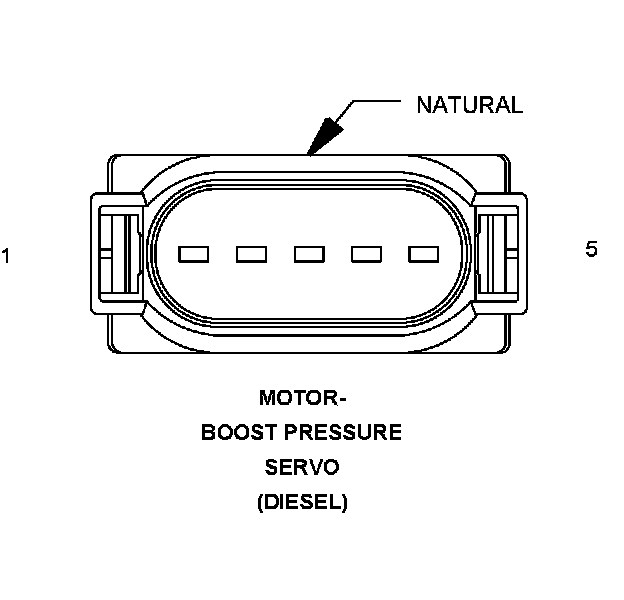

Component : MOTOR-BOOST PRESSURE SERVO

Connector:
Name : MOTOR-BOOST PRESSURE SERVO
Color : NATURAL
# of pins : 5
Qualifier : (DIESEL)




Pin Description Circuit
1 FUSED ASD RELAY OUTPUT A15 18RD/DG
2 GROUND Z42 18BR
3 - -
4 BOOST PRESSURE SERVO MOTOR CONTROL X635 20GY/DG
5 - -

Component Location - 30
