Water In Fuel Sensor

Component ID: 489

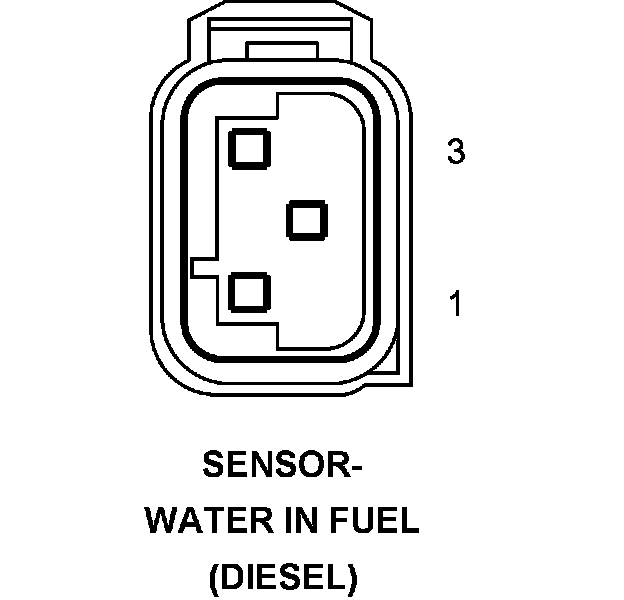

Component : SENSOR-WATER IN FUEL

Connector:
Name : SENSOR-WATER IN FUEL
Color :
# of pins : 3
Qualifier : (DIESEL)




Pin Description Circuit
1 WATER IN FUEL SENSOR GROUND K923 18GY/DG
2 WATER IN FUEL SENSOR SIGNAL G123 18PK/RD
3 FUSED ASD RELAY OUTPUT A15 18RD/DG

Component Location - 30
