Blower Motor Resistor: Diagrams

Component ID: 261

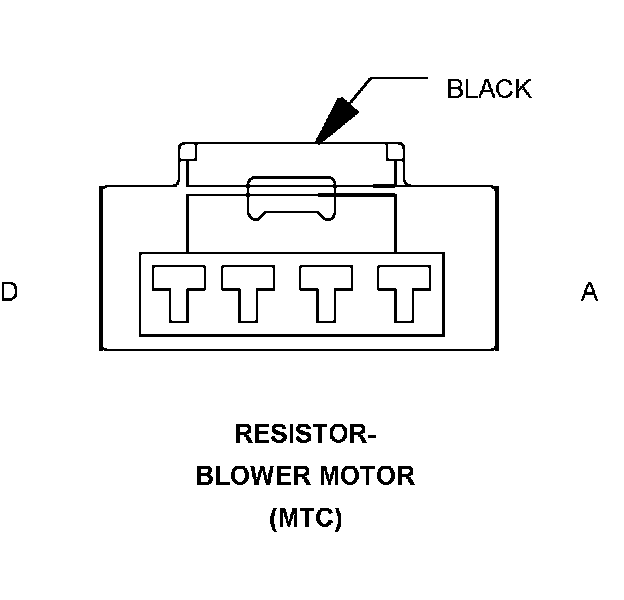

Component : RESISTOR-BLOWER MOTOR

Connector:
Name : RESISTOR-BLOWER MOTOR
Color : BLACK
# of pins : 4
Qualifier : (MTC)




A BLOWER M2 SPEED C73 12GY/LG
B BLOWER M1 SPEED C72 12OR/LG
C BLOWER LOW SPEED C71 20RD/LG
D BLOWER HIGH SPEED C74 12LB
