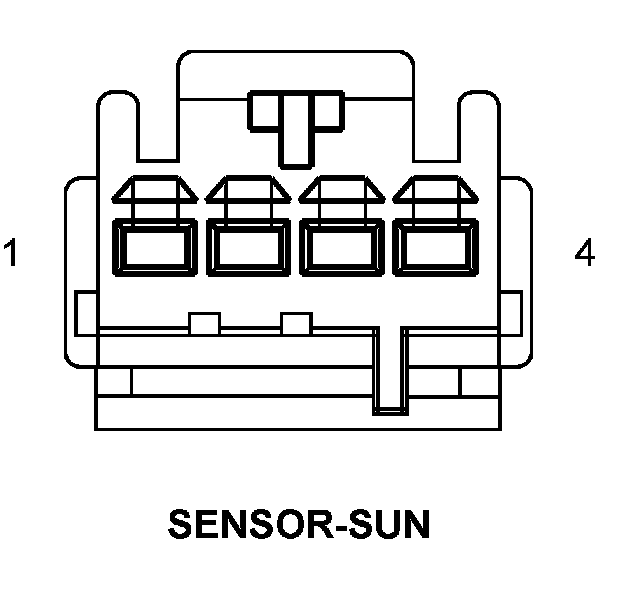

Solar Sensor: Diagrams

Component ID: 485
Component : SENSOR-SUN

Connector:
Name : SENSOR-SUN
Color :
# of pins : 4




Pin Description Circuit
1 SUN SENSOR NO. 1 SIGNAL G39 20VT/LB
2 SUN SENSOR RETURN G939 20VT/DB
3 - -
4 SUN SENSOR NO. 2 SIGNAL G139 20VT/OR
