Center Mounted Brake Lamp: Locations

Component ID: 144

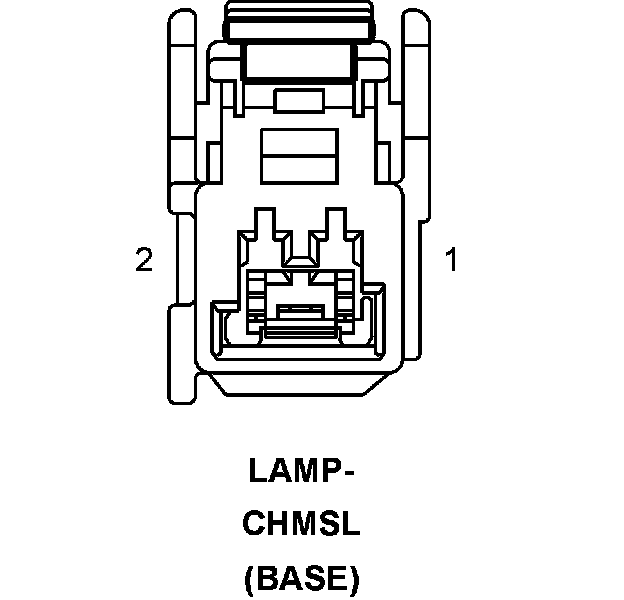

Component : LAMP-CHMSL

Connector:
Name : LAMP-CHMSL
Color :
# of pins : 2
Qualifier : (BASE)




Pin Description Circuit
1 GROUND Z800 18BK
2 BRAKE LAMP SWITCH OUTPUT L50 18WT/TN

Component Location - 73
