Horn: Locations

Component ID: 133
Component : HORN-NO. 1

Connector:
Name : HORN-NO. 1
Color : BLACK
# of pins : 2




Pin Description Circuit
1 GROUND Z384 18BK
2 HORN RELAY OUTPUT X2 18DG/OR

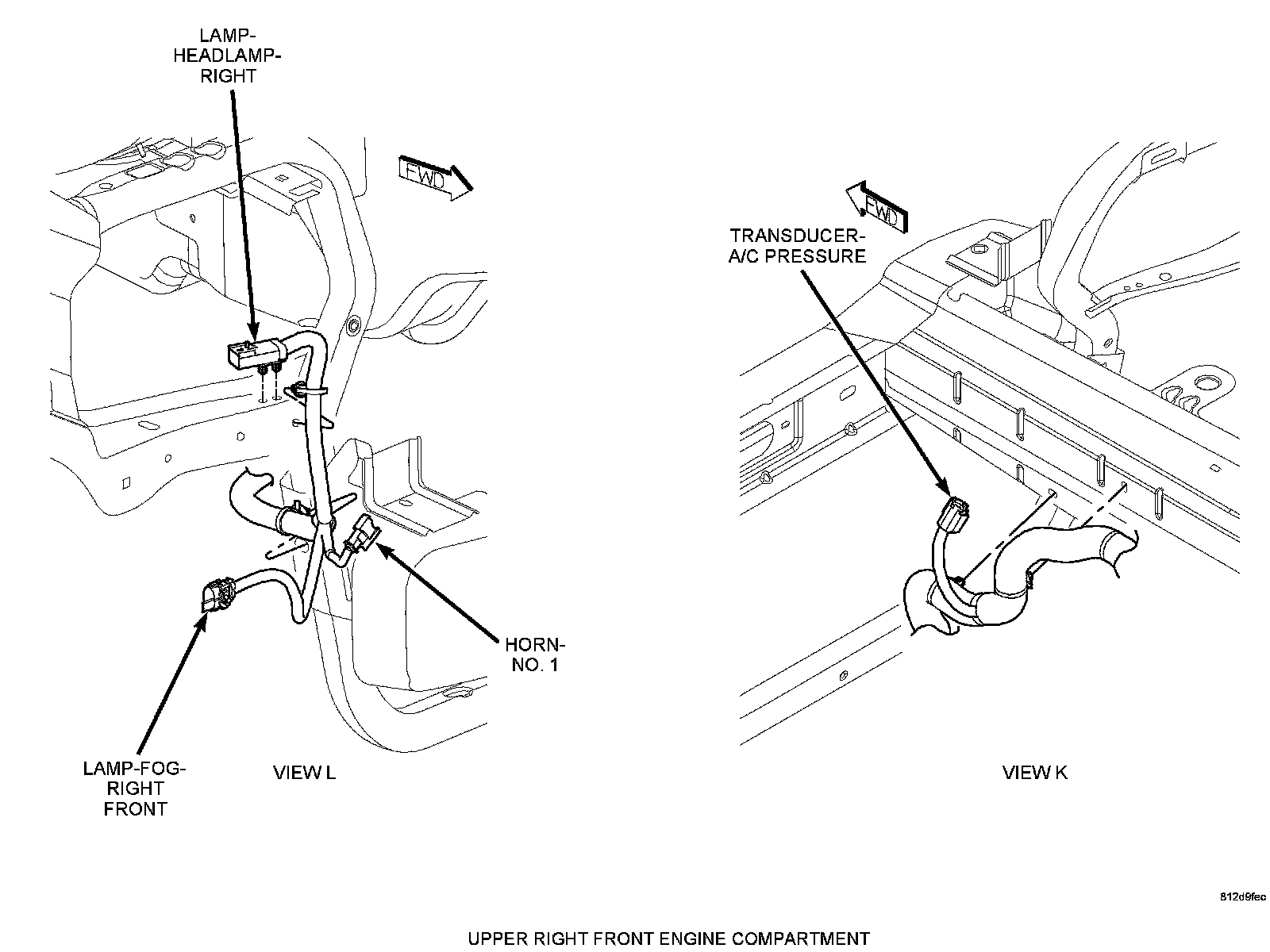

Component Location - 9
