Ambient Temperature Sensor / Switch HVAC

Component ID: 481

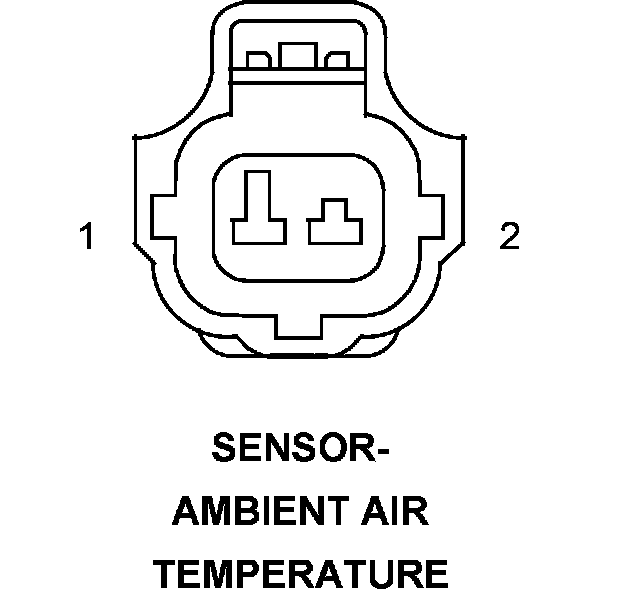

Component : SENSOR-AMBIENT AIR TEMPERATURE

Connector:
Name : SENSOR-AMBIENT AIR TEMPERATURE
Color :
# of pins : 2




Pin Circuit Description
1 G931 20VT/BR SENSOR GROUND
2 G31 20VT/OR AAT SIGNAL

Component Location - 7
