Towing Module

Component ID: 234
Component : MODULE-TRAILER TOW

Connector:
Name : MODULE-TRAILER TOW C2
Color :
# of pins : 4
Gender : FEMALE




Pin Circuit Description
1 A922 16RD FUSED B(+)
2 - -
3 Z923 14BK GROUND
4 - -



Connector:

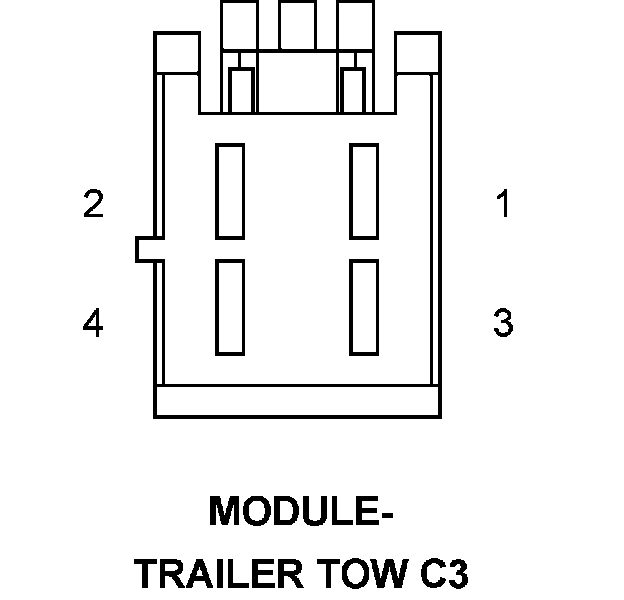

Name : MODULE-TRAILER TOW C3
Color :
# of pins : 4
Gender : FEMALE




Pin Circuit Description
1 - -
2 L70 18WT/GY FUSED PARK LAMP RELAY OUTPUT
3 - -
4 L7 18WT/YL FUSED PARK LAMP RELAY OUTPUT



Connector:
Name : MODULE-TRAILER TOW C4
Color :
# of pins : 8
Gender : FEMALE




Pin Circuit Description
1 D55 20WT/OR CAN B BUS (+)
2 - -
3 - -
4 - -
5 D54 20WT CAN B BUS (-)
6 F941 20PK/LG FUSED IGNITION SWITCH OUTPUT (RUN-START)
7 L50 20WT/TN BRAKE LAMP SWITCH OUTPUT
8 - -



Connector:
Name : MODULE-TRAILER TOW C5
Color :
# of pins : 6
Qualifier : (EXPORT)
Gender : FEMALE




Pin Circuit Description
1 L111 18WT TRAILER TOW BACKUP LAMP FEED
2 L240 18WT/VT TRAILER TOW REAR FOG LAMP RELAY CONTROL
3 L617 18WT/YL TRAILER TOW LEFT STOP/TURN SIGNAL
4 - -
5 L616 18WT/DB TRAILER TOW RIGHT STOP/TURN SIGNAL
6 L650 18WT/BR TRAILER TOW STOP LAMP FEED
