Blower Motor Resistor: Locations

Component ID: 302
Component : RESISTOR-BLOWER MOTOR-REAR

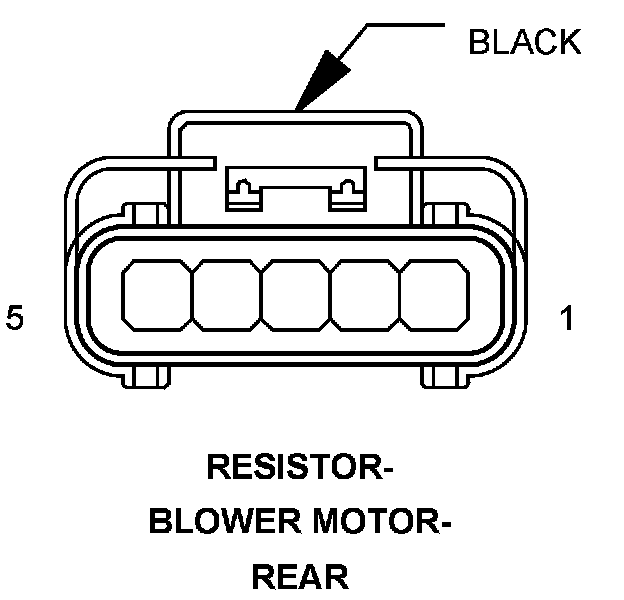

Connector:
Name : RESISTOR-BLOWER MOTOR-REAR
Color : BLACK
# of pins : 5




Pin Circuit Description
1 - -
2 C951 14BK/WT REAR BLOWER HIGH SPEED
3 C153 14DB/VT REAR BLOWER HIGH SPEED
4 C152 16LB REAR BLOWER MEDIUM SPEED
5 C151 16DB/BR REAR BLOWER LOW SPEED

Component Location - 60
