License Plate Lamp: Locations

Component ID: 187

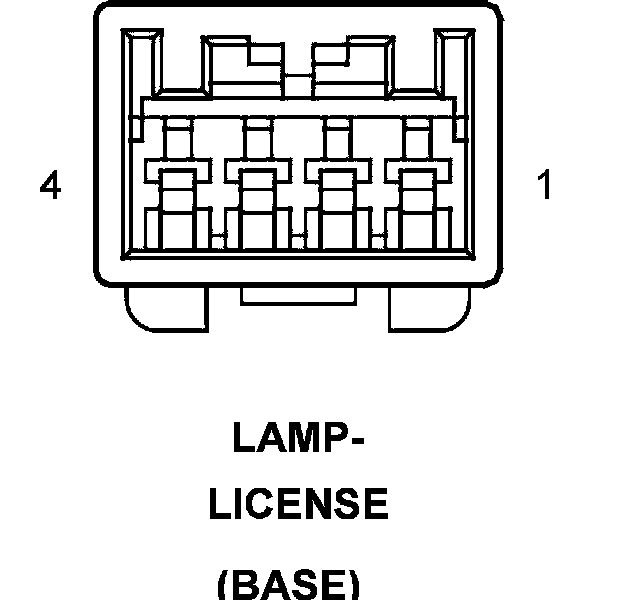

Component : LAMP-LICENSE

Connector:
Name : LAMP-LICENSE
Color :
# of pins : 4
Qualifier : (BASE)




Pin Circuit Description
1 L777 20WT/VT FUSED PARK LAMP RELAY OUTPUT
2 Z800 20BK GROUND
3 Q80 20OR/VT FLIP-UP GLASS SWITCH SENSE
4 - -

Component Location - 75
