Airbag-Driver Squib 1

Component ID: 8

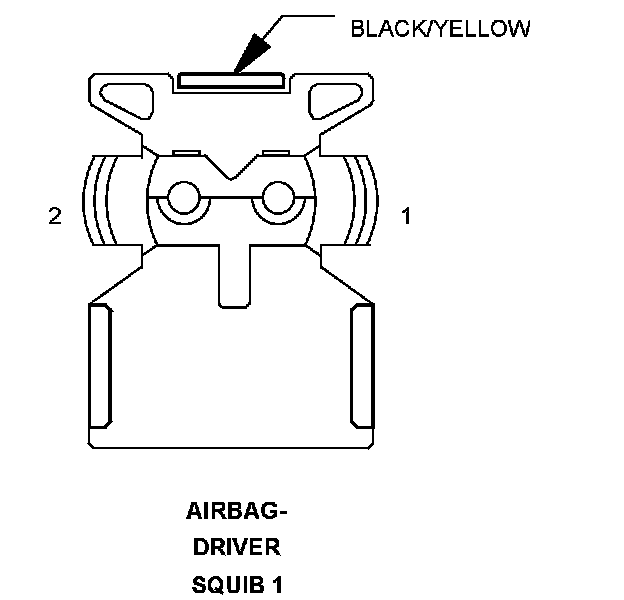

Component : AIRBAG-DRIVER SQUIB 1

Connector:
Name : AIRBAG-DRIVER SQUIB 1
Color : BLACK/YELLOW
# of pins : 2




Pin Circuit Description
1 R345 20LG/OR DRIVER SQUIB 1 LINE 1
2 R343 20LG/BR DRIVER SQUIB 1 LINE 2

Component Location - 45
