C200
Component ID: 30
Component : C200

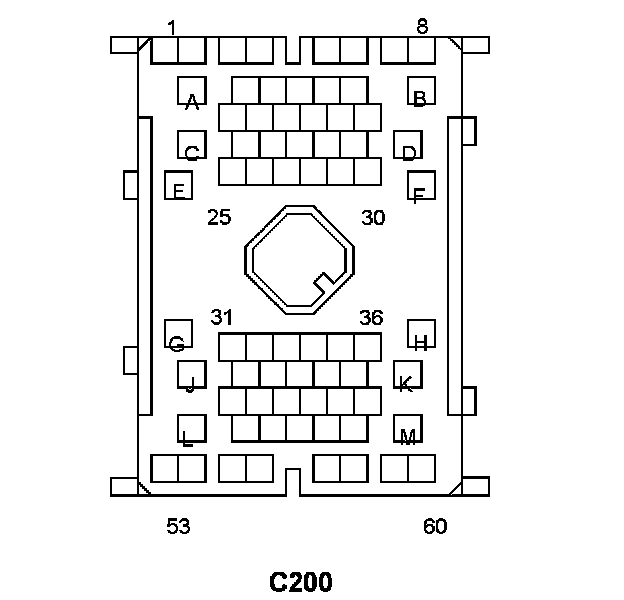

Connector:
Name : C200
Color : BLACK
# of pins : 0
Gender : FEMALE
Pin Circuit Description
1 D508 20WT/TN COM-LIN TIRE PRESSURE MONITOR LAN
2 L1 18WT/LG BACKUP LAMP FEED
3 F26 18PK/OR IGNITION SWITCH OUTPUT (START)
4 A106 18LB/RD FUSED B(+)
5 Z172 20BK/OR GROUND
6 K504 20BR DRIVETRAIN 5 VOLT SUPPLY
7 A72 18RD/OR ADJUSTABLE PEDALS RELAY OUTPUT
8 - -
9 V937 20VT/BR S/C SWITCH RETURN
10 G95 20VT/WT 4WD NEUTRAL INDICATOR
11 D71 20WT/DB DIAGNOSTIC CAN C (-)
12 D72 20WT/LB DIAGNOSTIC CAN C (+)
13 L778 20WT/DB FUSED PARK LAMP RELAY OUTPUT
14 F20 20PK/GY FUSED IGNITION SWITCH OUTPUT (RUN-START)
15 D64 20WT/LB CAN C BUS (-)
16 D65 20WT/LG CAN C BUS (+)
17 B46 18DG/WT ESP/TCS ON/OFF SWITCH SENSE
18 G94 18VT/DB DYNAMICS SENSOR GROUND
19 Z11 20BK/LG GROUND
20 Z111 20BK/WT GROUND
21 K977 20BR/LB MODE SELECT
22 - -
23 - -
24 T5 20DG/YL AUTOSTICK UP/DOWN (ERS) SIGNAL
25 - -
26 X778 20GY/DB PARK ASSIST DISPLAY SUPPLY
27 V72 20OR/VT S/C SWITCH SENSE 2
28 G4 18VT/LB DYNAMICS SENSOR SUPPLY
29 R79 20LB/VT LEFT FRONT IMPACT SENSOR SIGNAL
30 R81 20LB/WT LEFT FRONT IMPACT SENSOR GROUND
31 D55 20WT/OR CAN B BUS (+)
32 D54 20WT CAN B BUS (-)
33 F100 20PK/VT FUSED RUN RELAY OUTPUT
34 F941B 20PK/LG FUSED IGNITION SWITCH OUTPUT (RUN-START)
35 V71 20VT/OR S/C SWITCH SENSE 1
36 D778 20WT/VT FRONT PARK ASSIST DISPLAY SIGNAL
37 D51 18PK/RD DYNAMICS SENSOR LOW DATA LINK
38 L91 20WT/DB HAZARD SWITCH SENSE
39 K900 20DB/DG SENSOR GROUND
40 N4 20DB/YL FUEL LEVEL SENSOR NO. 1 SIGNAL
41 D96 20WT/LB SIREN SIGNAL CONTROL
42 D52 18WT/LB DYNAMICS SENSOR HIGH DATA LINK
43 - -
44 - -
45 L777 20WT/BR FUSED PARK LAMP RELAY OUTPUT
46 L13 20WT/YL HEADLAMP LEVEL SENSOR SIGNAL
47 D223 20WT/VT SCI TRANSMIT (TCM)
48 D64 20WT/LB CAN C BUS (-)
49 D65 20WT/LG CAN C BUS (+)
50 Z210 20BK GROUND
51 F1 18PK/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
52 - -
53 - -
54 - -
55 - -
56 - -
57 - -
58 - -
59 B15 20DG/WT BRAKE SWITCH NO. 1 SIGNAL
60 T6 20DG TOW/HAUL OVERDRIVE OFF SWITCH SENSE
A A115 12YL/RD FUSED B(+)
B - -
C C7 12DB FRONT BLOWER MOTOR RELAY OUTPUT
D - -
E N114 10DB/LB PTC NO. 2 RELAY OUTPUT
F N115 10DB/YL PTC NO. 3 RELAY OUTPUT
G N113 10DB/OR PTC NO. 1 RELAY OUTPUT
H C105 20LB/LG REAR HVAC CONTROL
J - -
K - -
L - -
M - -
Component Location - 39
Component Location - 38
Component Location - 2

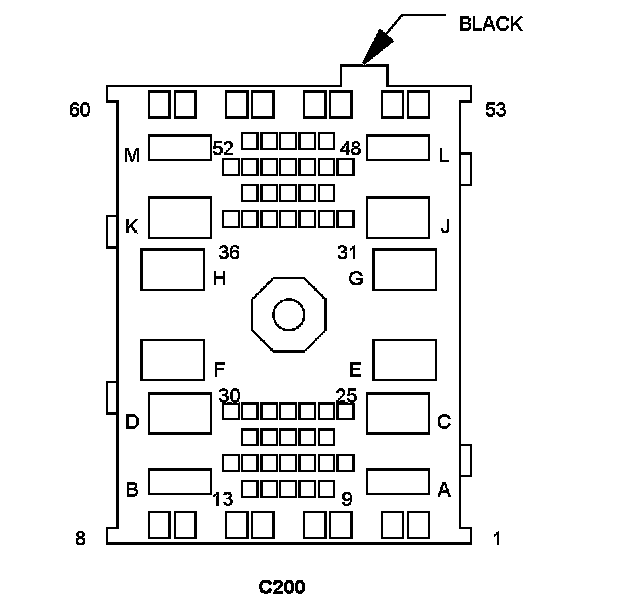

Connector:
Name : C200
Color : BLACK
# of pins : 72
Gender : MALE
Pin Circuit Description
1 D508 20WT/GY COM-LIN TIRE PRESSURE MONITOR LAN
2 L1 16WT/LG BACKUP LAMP FEED
3 F26 16PK/OR IGNITION SWITCH OUTPUT (START)
4 A106 16LB/RD FUSED B(+)
5 Z172 20BK/OR GROUND
6 K504 20BR DRIVETRAIN 5 VOLT SUPPLY
7 A72 16RD/OR ADJUSTABLE PEDALS RELAY OUTPUT
8 - -
9 V937 20VT/BR S/C SWITCH RETURN
10 G95 20VT/BR 4WD NEUTRAL INDICATOR
11 D71 20WT/DB DIAGNOSTIC CAN C (-)
12 D72 20WT/LB DIAGNOSTIC CAN C (+)
13 L778 20WT/LB FUSED PARK LAMP RELAY OUTPUT
14 F20 20PK/GY FUSED IGNITION SWITCH OUTPUT (RUN-START)
15 D64 20WT/LB CAN C BUS (-)
16 D65 20WT/LG CAN C BUS (+)
17 B46 20DG/WT ESP/TCS ON/OFF SWITCH SENSE
18 G94 20VT/DB DYNAMICS SENSOR GROUND
19 Z11 20BK/LG GROUND
20 Z111 20BK/WT GROUND
21 K977 20BR/WT MODE SELECT
22 - -
23 - -
24 T5 20DG/YL AUTOSTICK UP/DOWN (ERS) SIGNAL
25 - -
26 X778 20GY/DB PARK ASSIST DISPLAY SUPPLY
27 V72 20OR/VT S/C SWITCH SENSE 2
28 G4 20VT/LB DYNAMICS SENSOR SUPPLY
29 R79 20LB/VT LEFT FRONT IMPACT SENSOR SIGNAL
30 R81 20LB/WT LEFT FRONT IMPACT SENSOR GROUND
31 D55 20WT/OR CAN B BUS (+)
32 D54 20WT CAN B BUS (-)
33 F100 20PK/VT FUSED RUN RELAY OUTPUT
34 F941B 20PK/LG FUSED IGNITION SWITCH OUTPUT (RUN-START)
35 V71 20VT/OR S/C SWITCH SENSE 1
36 D778 20WT/OR FRONT PARK ASSIST DISPLAY SIGNAL
37 D51 20WT/BR DYNAMICS SENSOR LOW DATA LINK
38 L91 20WT/DB HAZARD SWITCH SENSE
39 K900 20DB/DG SENSOR GROUND
40 N4 20DB/YL FUEL LEVEL SENSOR NO. 1 SIGNAL
41 D96 20WT/LB SIREN SIGNAL CONTROL
42 D52 20WT/LB DYNAMICS SENSOR HIGH DATA LINK
43 - -
44 - -
45 L777 20WT/VT FUSED PARK LAMP RELAY OUTPUT
46 L13 20WT/YL HEADLAMP LEVEL SENSOR SIGNAL
47 D223 20WT/VT SCI TRANSMIT (PCM)
48 D64 20WT/LB CAN C BUS (-)
49 D65 20WT/LG CAN C BUS (+)
50 Z210 20BK GROUND
51 F1 20PK/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
52 - -
53 - -
54 - -
55 - -
56 - -
57 - -
58 - -
59 B15 20DG/WT BRAKE SWITCH NO. 1 SIGNAL
60 T6 20DG TOW/HAUL OVERDRIVE OFF SWITCH SENSE
A A115 12YL/RD FUSED B(+)
B - -
C C7 12DB FRONT BLOWER MOTOR RELAY OUTPUT
D - -
E N114 10DB/LB PTC NO. 2 RELAY OUTPUT
F N115 10DB/YL PTC NO. 3 RELAY OUTPUT
G N113 10DB/OR PTC NO. 1 RELAY OUTPUT
H C105 20LB/LG REAR HVAC CONTROL
J - -
K - -
L - -
M - -
Component Location - 39
Component Location - 38
Component Location - 2
