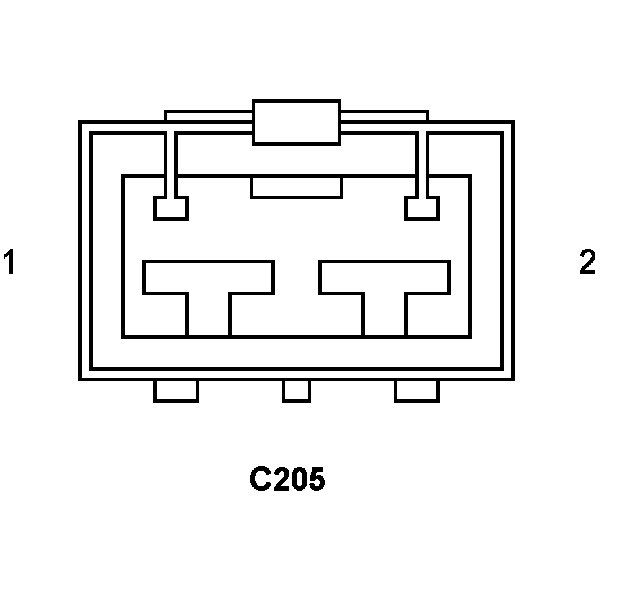

C205

Component ID: 33
Component : C205

Connector:
Name : C205
Color :
# of pins : 2
Gender : FEMALE




Pin Circuit Description
1 C7 12DB FRONT BLOWER MOTOR RELAY OUTPUT
2 Z134 12BK/LG GROUND

Component Location - 33




Component Location - 35




Component Location - 40






Connector:
Name : C205
Color :
# of pins : 2
Gender : MALE




Pin Circuit Description
1 C7 12DB FRONT BLOWER MOTOR RELAY OUTPUT
2 Z134 12BK/LG GROUND

Component Location - 33




Component Location - 35




Component Location - 40
