C302

Component ID: 36
Component : C302

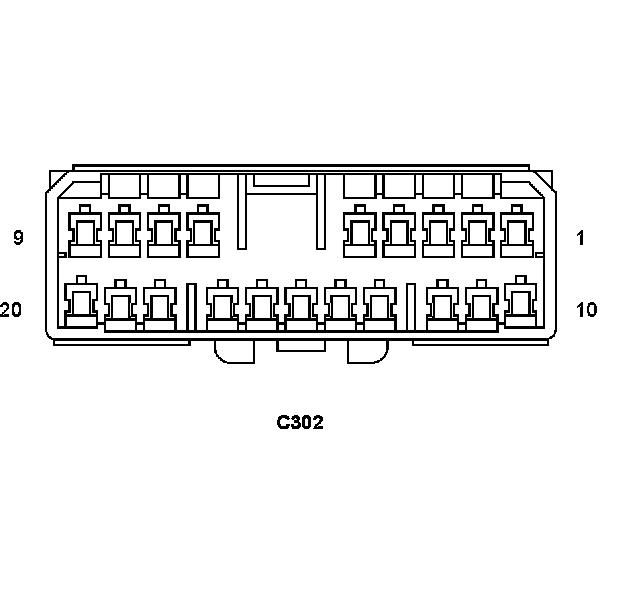

Connector:
Name : C302
Color :
# of pins : 20
Gender : FEMALE




Pin Circuit Description
1 - -
2 - -
3 C17 20LB/DG FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
4 - -
5 - -
6 - -
7 Z908 16BK GROUND
8 P699 20LG/YL FOLDING MIRROR CONTROL
9 - -
10 - -
11 - -
12 P110 20LB/WT FOLDING MIRROR RETURN
13 - -
14 P792 16LG/TN PASSENGER DOORS UNLOCK RELAY OUTPUT
15 P778 16LG/LB DOOR LOCK RELAY OUTPUT
16 - -
17 - -
18 - -
19 - -
20 P76 20TN/LB MIRROR COMMON DRIVER

Component Location - 66




Component Location - 55






Connector:
Name : C302
Color :
# of pins : 20
Gender : MALE




Pin Circuit Description
1 - -
2 - -
3 C17 20LB/DG FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
4 - -
5 - -
6 - -
7 Z908 16BK GROUND
8 P699 20LG/YL FOLDING MIRROR CONTROL
9 - -
10 - -
11 - -
12 P110 20LB/WT FOLDING MIRROR RETURN
13 - -
14 P792 18LG/TN PASSENGER DOORS UNLOCK RELAY OUTPUT
15 P778 18LG/LB DOOR LOCK RELAY OUTPUT
16 - -
17 - -
18 - -
19 - -
20 P76 20TN/LB MIRROR COMMON DRIVER

Component Location - 66




Component Location - 55
