C314

Component ID: 48
Component : C314

Connector:
Name : C314
Color :
# of pins : 10
Qualifier : (REAR PARK ASSIST)
Gender : FEMALE

Pin Circuit Description
1 A35 18RD/DG REAR FOG LAMP RELAY OUTPUT
2 D703 20WT/OR PARK ASSIST SENSOR NO. 9 SIGNAL
3 X750 20GY/LB GROUND
4 X700 20GY/OR PARK ASSIST SENSOR SUPPLY
5 - -
6 - -
7 D701 20WT/LB PARK ASSIST SENSOR NO. 8 SIGNAL
8 D704 20WT/DB PARK ASSIST SENSOR NO. 10 SIGNAL
9 D700 20WT/DG PARK ASSIST SENSOR NO. 7 SIGNAL
10 Z918 18BK GROUND

Component Location - 76

Component Location - 71

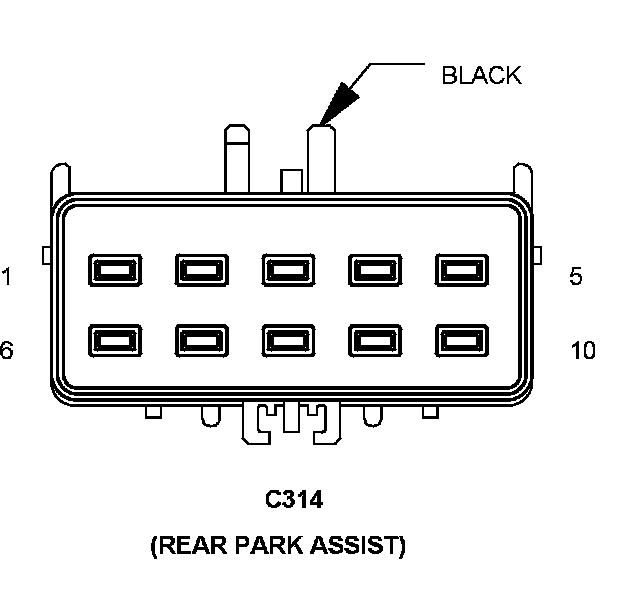

Connector:
Name : C314
Color : BLACK
# of pins : 10
Qualifier : (REAR PARK ASSIST)
Gender : MALE

Component Location - 71
