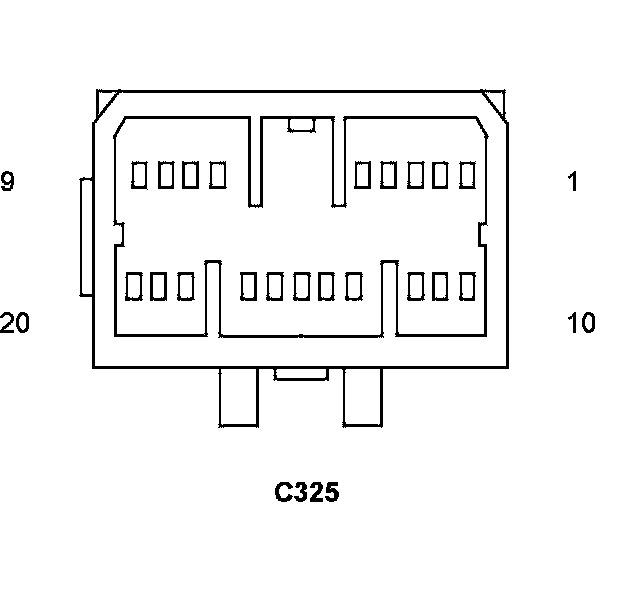

C325

Component ID: 59
Component : C325

Connector:
Name : C325
Color :
# of pins : 20
Gender : FEMALE




Pin Circuit Description
1 - -
2 Q901 20OR/LB LOGIC GROUND
3 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
4 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
5 P778 16LG/LB DOOR LOCK RELAY OUTPUT
6 P792 16LG/TN PASSENGER DOORS UNLOCK RELAY OUTPUT
7 X971 20DG/OR CAMERA RETURN
8 X970 20DG/BR CAMERA SIGNAL
9 X972 20DG/WT CAMERA SHIELD
10 Q84 18TN/GY LIFTGATE LATCH CINCH DRIVER
11 - -
12 Q76 20OR/PK LATCH SECONDARY POSITION SENSE
13 G80 20VT/BR FLIP-UP GLASS AJAR SWITCH SENSE
14 Q81 18OR/GY FLIP-UP GLASS RELAY OUTPUT
15 L777 20WT/VT FUSED PARK LAMP RELAY OUTPUT
16 Q80 20OR/VT FLIP-UP GLASS SWITCH SENSE
17 Q85 18TN/WT LIFTGATE LATCH RELEASE DRIVER
18 Q60 20OR/YL LIFTGATE PAWL SWITCH SENSE
19 Q78 20OR/DB RIGHT PINCH SENSOR SIGNAL
20 L1 16WT/LG BACKUP LAMP FEED



Connector:
Name : C325
Color :
# of pins : 20
Gender : MALE




Pin Circuit Description
1 - -
2 Q901 20OR/VT LOGIC GROUND
3 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
4 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
5 P778 16LG/LB DOOR LOCK RELAY OUTPUT
6 P792 16LG/TN PASSENGER DOORS UNLOCK RELAY OUTPUT
7 X971 20DG/OR CAMERA RETURN
8 X970 20DG/BR CAMERA SIGNAL
9 X972 20DG/WT CAMERA SHIELD
10 Q84 18TN/GY LIFTGATE LATCH CINCH DRIVER
11 - -
12 Q76 20OR/YL LATCH SECONDARY POSITION SENSE
13 G80 20VT/BR FLIP-UP GLASS AJAR SWITCH SENSE
14 Q81 18OR/GY FLIP-UP GLASS RELAY OUTPUT
15 L777 20WT/VT FUSED PARK LAMP RELAY OUTPUT
16 Q80 20OR/VT FLIP-UP GLASS SWITCH SENSE
17 Q85 18TN/WT LIFTGATE LATCH RELEASE DRIVER
18 Q60 20OR/YL LIFTGATE PAWL SWITCH SENSE
19 Q78 20OR/DB RIGHT PINCH SENSOR SIGNAL
20 L1 16WT/LG BACKUP LAMP FEED
