C328

Component ID: 62
Component : C328

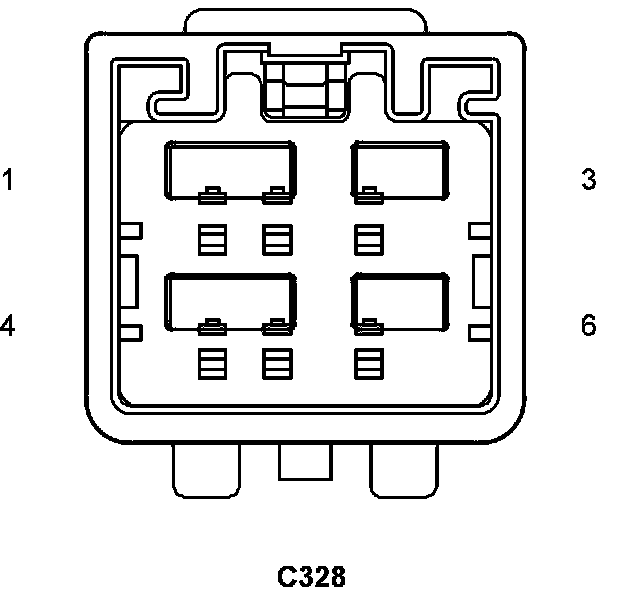

Connector:
Name : C328
Color :
# of pins : 6
Gender : FEMALE




Pin Circuit Description
1 Z908 14BK GROUND
2 C51 14LB/BR REAR BLOWER MOTOR RELAY OUTPUT
3 F850 20LB/PK FUSED RUN RELAY OUTPUT
4 Z908 20BK GROUND
5 E2 20OR/BR PANEL LAMPS DRIVER
6 - -

Component Location - 58




Component Location - 60

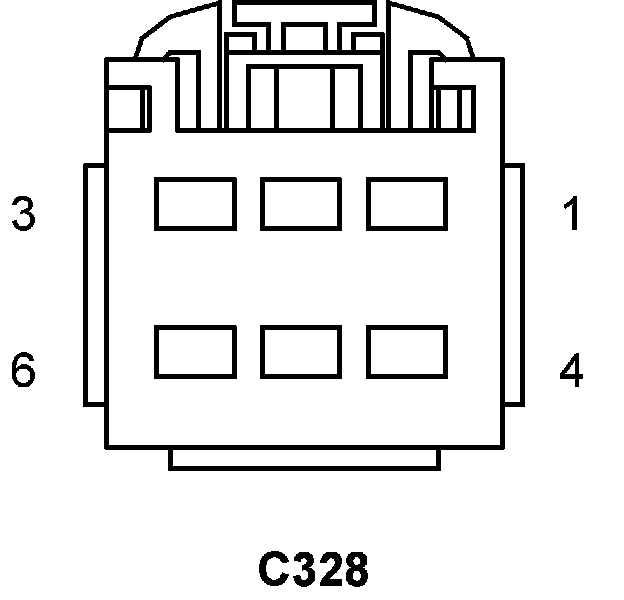

Connector:
Name : C328
Color :
# of pins : 6
Gender : MALE




Pin Circuit Description
1 Z908 14BK GROUND
2 C51 14LB/BR REAR BLOWER MOTOR RELAY OUTPUT
3 F850 20LB/PK FUSED RUN RELAY OUTPUT
4 Z908 14BK GROUND
5 E2 20OR/BR PANEL LAMPS DRIVER
6 - -

Component Location - 58




Component Location - 60
