Control-A/C-Heater-Rear

Component ID: 84
Component : CONTROL-A/C-HEATER-REAR

Connector:

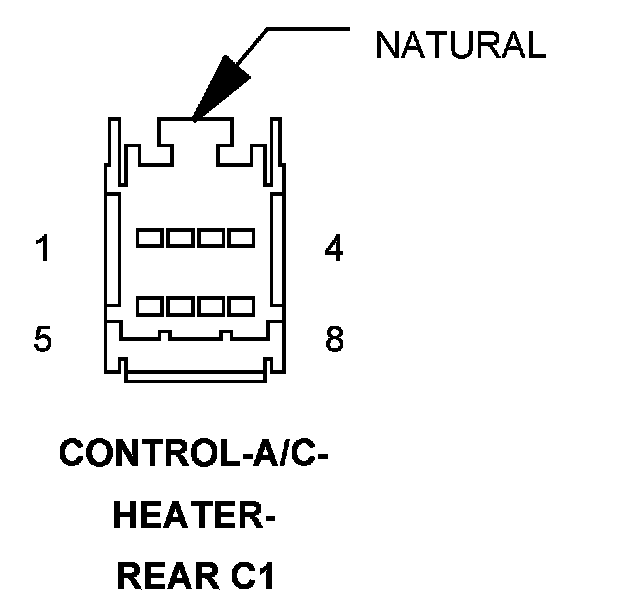

Name : CONTROL-A/C-HEATER-REAR C1
Color : NATURAL
# of pins : 8




Pin Circuit Description
1 F850 20LB/PK FUSED RUN RELAY OUTPUT
2 C54 20YL REAR BLEND DOOR CONTROL
3 C53 20LG/BK REAR MODE DOOR CONTROL
4 Z908 20BK GROUND
5 E2 20OR/BR PANEL LAMPS DRIVER
6 - -
7 - -
8 - -



Connector:
Name : CONTROL-A/C-HEATER-REAR C2
Color : NATURAL
# of pins : 6




Pin Circuit Description
1 C153 14DB/VT REAR BLOWER HIGH SPEED
2 C152 16LB REAR BLOWER MEDIUM SPEED
3 C151 16DB/BR REAR BLOWER LOW SPEED
4 Z908 14BK GROUND
5 - -
6 - -
