Glove Box Lamp
Component ID: 182

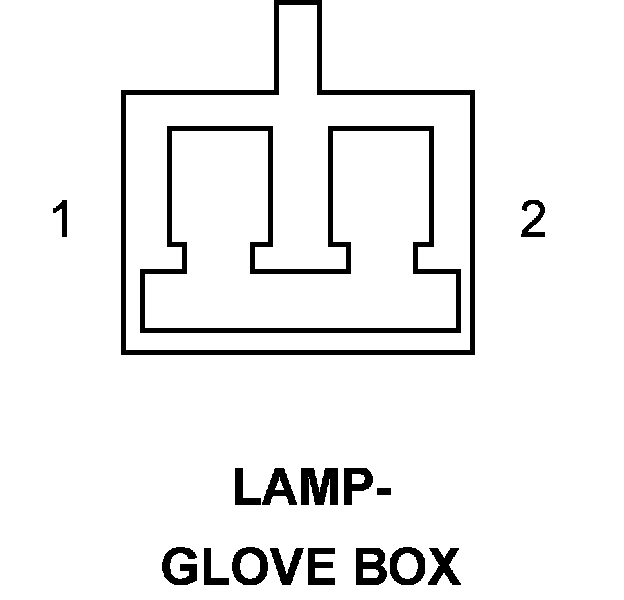

Component : LAMP-GLOVE BOX
Connector:
Name : LAMP-GLOVE BOX
Color :
# of pins : 2
Pin Circuit Description
1 A931 20RD/WT FUSED B(+)
2 M28 20YL/TN GLOVE BOX/MAP LAMP DRIVER
Component Location - 42
Component ID: 182
Component : LAMP-GLOVE BOX
Connector:
Name : LAMP-GLOVE BOX
Color :
# of pins : 2
Pin Circuit Description
1 A931 20RD/WT FUSED B(+)
2 M28 20YL/TN GLOVE BOX/MAP LAMP DRIVER
Component Location - 42
