Coil-Ignition-No. 8

Component ID: 81
Component : COIL-IGNITION-NO. 8

Connector:

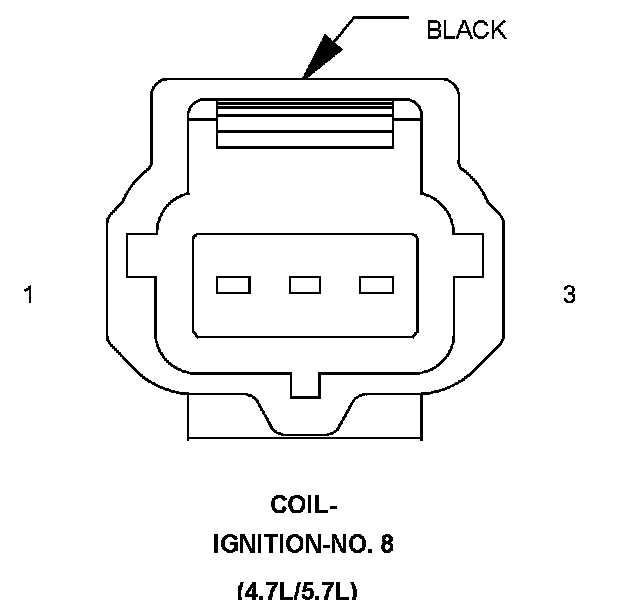

Name : COIL-IGNITION-NO. 8
Color : BLACK
# of pins : 3
Qualifier : (4.7L/5.7L)




Pin Circuit Description
1 K98 16DB/YL COIL CONTROL NO. 8
Pin Circuit Description
1 K98 16DB/BK COIL CONTROL NO. 8
2 A15 16RD/TN FUSED ASD RELAY OUTPUT
3 - -

Component Location - 20




Component Location - 24
