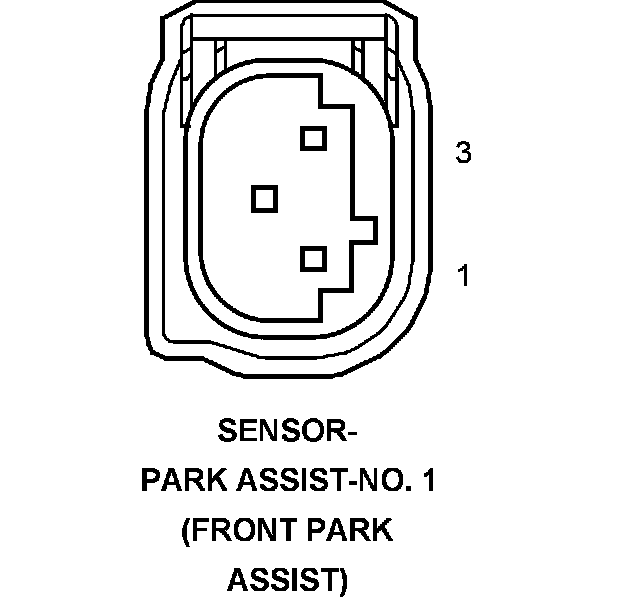

Sensor-Park Assist-No. 1

Component ID: 515
Component : SENSOR-PARK ASSIST-NO. 1

Connector:
Name : SENSOR-PARK ASSIST-NO. 1
Color :
# of pins : 3
Qualifier : (FRONT PARK ASSIST)




Pin Circuit Description
1 D702 20WT/YL PARK ASSIST SENSOR NO. 1 SIGNAL
2 Z169 20BK/LG GROUND
3 X702 20GY/LB FRONT PARK ASSIST SENSOR SUPPLY
