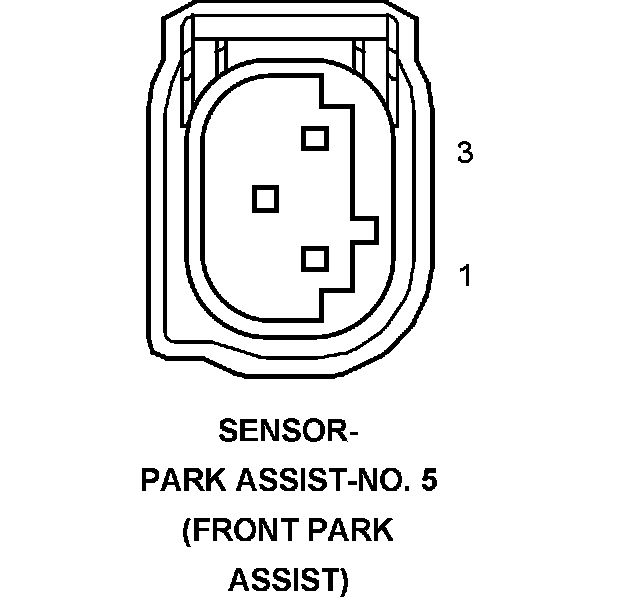

Sensor-Park Assist-No. 5

Component ID: 520
Component : SENSOR-PARK ASSIST-NO. 5

Connector:
Name : SENSOR-PARK ASSIST-NO. 5
Color :
# of pins : 3
Qualifier : (FRONT PARK ASSIST)




Pin Circuit Description
1 D708 20WT/LB PARK ASSIST SENSOR NO. 5 SIGNAL
2 Z169 20BK/LG GROUND
3 X702 20GY/LB FRONT PARK ASSIST SENSOR SUPPLY
