Display-Park Assist-Front

Component ID: 86

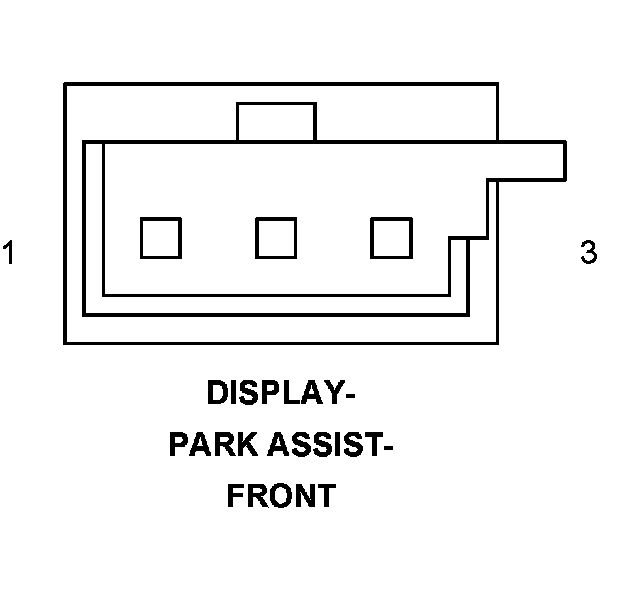

Component : DISPLAY-PARK ASSIST-FRONT

Connector:
Name : DISPLAY-PARK ASSIST-FRONT
Color :
# of pins : 3




Pin Circuit Description
1 X778 20GY/DB PARK ASSIST DISPLAY SUPPLY
2 Z172 20BK/OR GROUND
3 D778 20WT/OR FRONT PARK ASSIST DISPLAY SIGNAL
