Latch-Door-Left Rear

Component ID: 195
Component : LATCH-DOOR-LEFT REAR

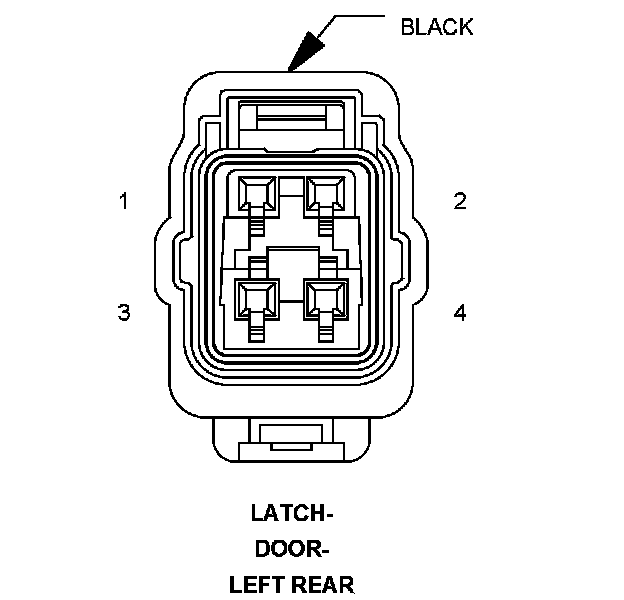

Connector:
Name : LATCH-DOOR-LEFT REAR
Color : BLACK
# of pins : 4




Pin Circuit Description
1 G77 20VT/GY LEFT REAR DOOR AJAR SWITCH SENSE
2 Z911 20BK GROUND
3 P792 16LG/TN PASSENGER DOORS UNLOCK RELAY OUTPUT
4 P778 16LG/LB DOOR LOCK RELAY OUTPUT

Component Location - 67
