Latch-Flip-Up Glass

Component ID: 199
Component : LATCH-FLIP-UP GLASS

Connector:
Name : LATCH-FLIP-UP GLASS C1
Color : BLACK
# of pins : 2
Qualifier : (LIFTGATE)




Pin Circuit Description
1 Z800 18BK GROUND
2 Q81 18OR/GY FLIP-UP GLASS RELAY OUTPUT

Component Location - 75






Connector:

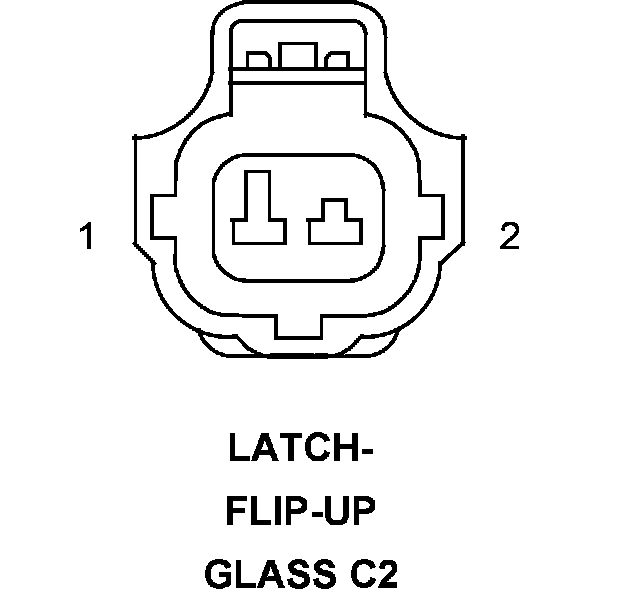

Name : LATCH-FLIP-UP GLASS C2
Color :
# of pins : 2
Qualifier : (LIFTGATE)




Pin Circuit Description
1 Z800 18BK GROUND
2 G80 20VT/BR FLIP-UP GLASS AJAR SWITCH SENSE

Component Location - 75
