Motor-Seat Adjuster-Passenger Recliner

Component ID: 247
Component : MOTOR-SEAT ADJUSTER-PASSENGER RECLINER

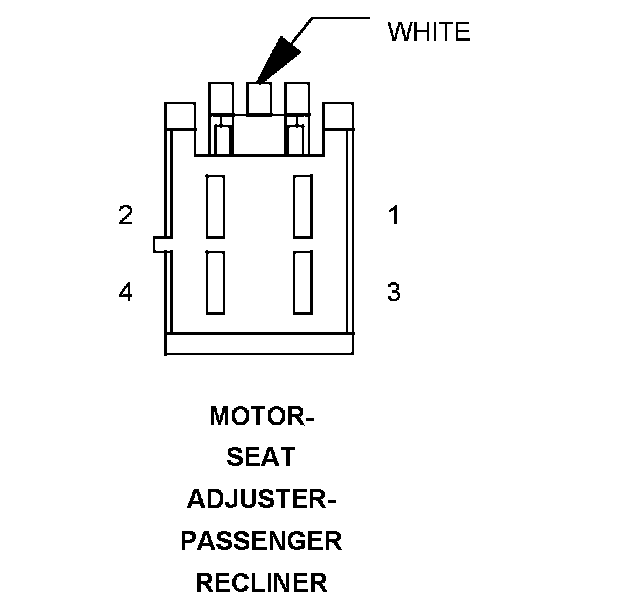

Connector:
Name : MOTOR-SEAT ADJUSTER-PASSENGER RECLINER
Color : WHITE
# of pins : 4




Pin Circuit Description
1 P44 16LG/VT PASSENGER SEAT RECLINER SWITCH UP
2 P42 16LG/GY PASSENGER SEAT RECLINER SWITCH DOWN
3 - -
4 - -

Component Location - 64
