Motor-Window-Left Rear

Component ID: 251

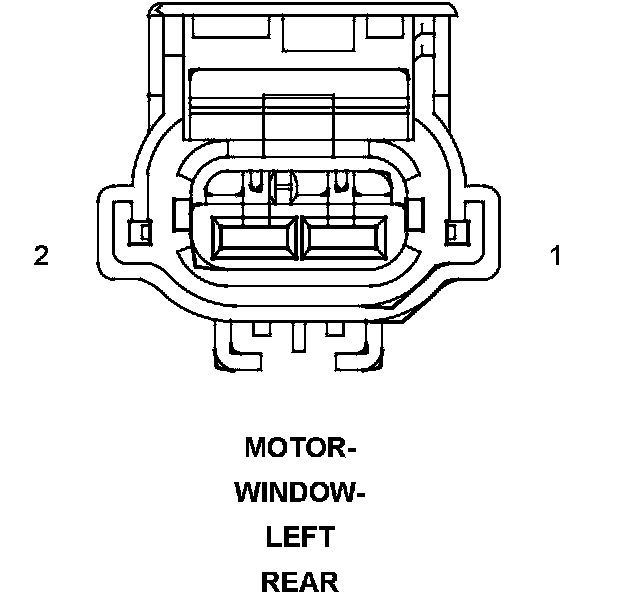

Component : MOTOR-WINDOW-LEFT REAR

Connector:
Name : MOTOR-WINDOW-LEFT REAR
Color :
# of pins : 2




Pin Circuit Description
1 Q111 16TN/YL LEFT REAR WINDOW DRIVER (UP)
2 Q211 16TN/LB LEFT REAR WINDOW DRIVER (DOWN)

Component Location - 67
