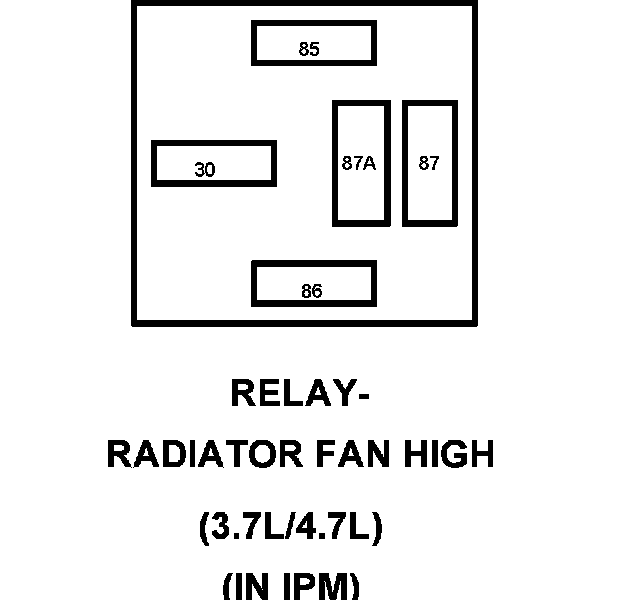

Relay-Radiator Fan High

Component ID: 286
Component : RELAY-RADIATOR FAN HIGH

Connector:
Name : RELAY-RADIATOR FAN HIGH
Color :
# of pins : 0
Qualifier : (3.7L/4.7L)




30 A16 10RD/BR FUSED B(+)
85 N112 20DB/OR RADIATOR FAN HIGH RELAY CONTROL
86 A16 10RD/BR FUSED B(+)
87 N23 10DB/DG HIGH SPEED RADIATOR FAN RELAY OUTPUT
87A - -
