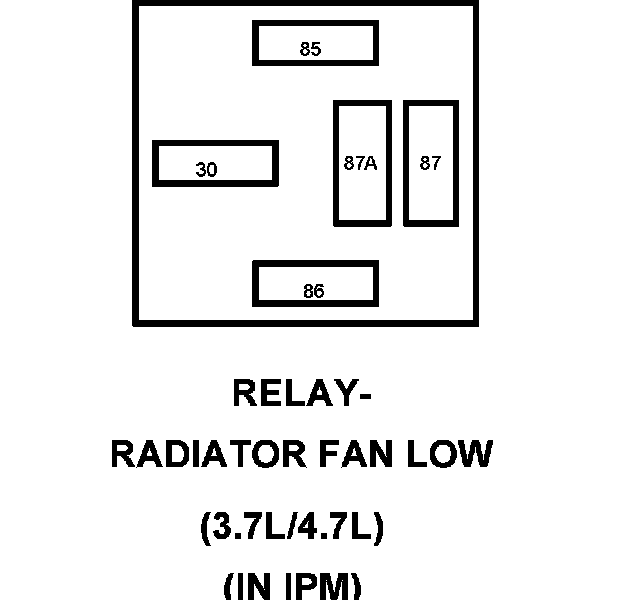

Relay-Radiator Fan Low

Component ID: 287
Component : RELAY-RADIATOR FAN LOW

Connector:
Name : RELAY-RADIATOR FAN LOW
Color :
# of pins : 0
Qualifier : (3.7L/4.7L)




30 A16 10RD/BR FUSED B(+)
85 N201 20DB/LG LOW SPEED RADIATOR FAN RELAY CONTROL
86 A16 10RD/BR FUSED B(+)
87 N24 10DG/DB LOW SPEED RADIATOR FAN RELAY OUTPUT
87A - -
