Camera-Rear Video

Component ID: 67
Component : CAMERA-REAR VIDEO

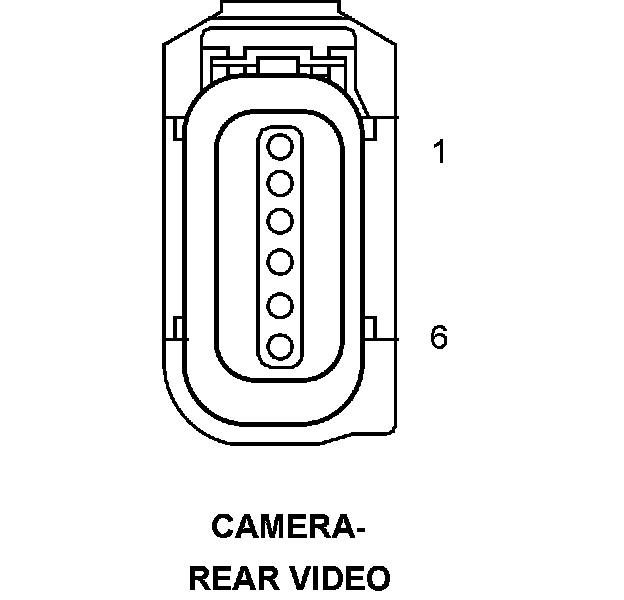

Connector:
Name : CAMERA-REAR VIDEO
Color : BLACK
# of pins : 6
Gender : FEMALE




Pin Circuit Description
1 - -
2 BK CAMERA RETURN
3 RD CAMERA SIGNAL
4 - -
5 LG GROUND
6 TN BACKUP LAMP FEED
